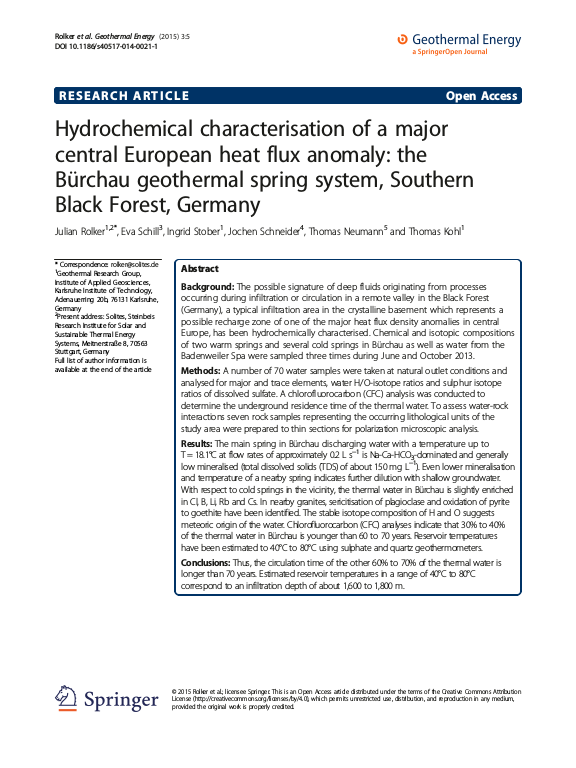

Hydrochemical characterisation of a Major central European heat flux anomaly: the Bürchau geothermal spring system, Southern Black Forest, Germany

Background: The possible signature of deep fluids originating from processes occurring during infiltration or circulation in a remote valley in the Black Forest (Germany), a typical infiltration area in the crystalline basement which represents a possible recharge zone of one of the major heat flux density anomalies in central Europe, has been hydrochemically characterised. Chemical and isotopic compositions of two warm springs and several cold springs in Bürchau as well as water from the Badenweiler Spa were sampled three times during June and October 2013.
Methods: A number of 70 water samples were taken at natural outlet conditions and analysed for major and trace elements, water H/O-isotope ratios and sulphur isotope ratios of dissolved sulfate. A chlorofluorocarbon (CFC) analysis was conducted to determine the underground residence time of the thermal water. To assess water-rock interactions seven rock samples representing the occurring lithological units of the study area were prepared to thin sections for polarization microscopic analysis.
Results: The main spring in Bürchau discharging water with a temperature up to T = 18.1°C at flow rates of approximately 0.2 L s$^{-1}$ is Na-Ca-HCO$_{3}$-dominated and generally low mineralised (total dissolved solids (TDS) of about 150 mg L$^{-1}$). ... mehrEven lower mineralisation and temperature of a nearby spring indicates further dilution with shallow groundwater. With respect to cold springs in the vicinity, the thermal water in Bürchau is slightly enriched in Cl, B, Li, Rb and Cs. In nearby granites, sericitisation of plagioclase and oxidation of pyrite to goethite have been identified. The stable isotope composition of H and O suggests meteoric origin of the water. Chlorofluorocarbon (CFC) analyses indicate that 30% to 40% of the thermal water in Bürchau is younger than 60 to 70 years. Reservoir temperatures have been estimated to 40°C to 80°C using sulphate and quartz geothermometers.
Conclusions: Thus, the circulation time of the other 60% to 70% of the thermal water is longer than 70 years. Estimated reservoir temperatures in a range of 40°C to 80°C correspond to an infiltration depth of about 1,600 to 1,800 m.
