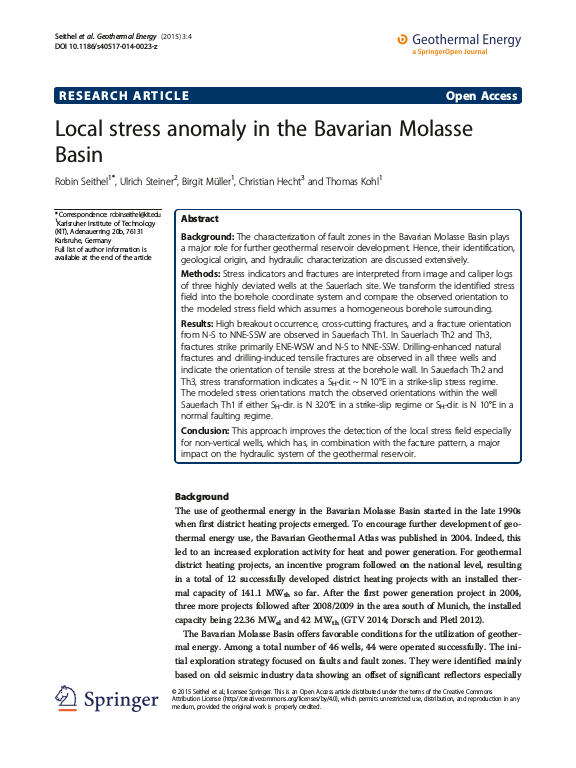

Local stress anomaly in the Bavarian Molasse Basin

Background: The characterization of fault zones in the Bavarian Molasse Basin plays a major role for further geothermal reservoir development. Hence, their identification, geological origin, and hydraulic characterization are discussed extensively.
Methods: Stress indicators and fractures are interpreted from image and caliper logs of three highly deviated wells at the Sauerlach site. We transform the identified stress field into the borehole coordinate system and compare the observed orientation to the modeled stress field which assumes a homogeneous borehole surrounding.
Results: High breakout occurrence, cross-cutting fractures, and a fracture orientation from N-S to NNE-SSW are observed in Sauerlach Th1. In Sauerlach Th2 and Th3, fractures strike primarily ENE-WSW and N-S to NNE-SSW. Drilling-enhanced natural fractures and drilling-induced tensile fractures are observed in all three wells and indicate the orientation of tensile stress at the borehole wall. In Sauerlach Th2 and Th3, stress transformation indicates a S$_{H}$-dir. ~ N 10°E in a strike-slip stress regime. The modeled stress orientations match the observed orientations within the well Sauerlach Th1 if either S$_{H}$-dir. ... mehris N 320°E in a strike-slip regime or S$_{H}$-dir. is N 10°E in a normal faulting regime.
Conclusion: This approach improves the detection of the local stress field especially for non-vertical wells, which has, in combination with the facture pattern, a major impact on the hydraulic system of the geothermal reservoir.
