DAC-less amplifier-less generation and transmission of QAM signals using sub-volt silicon-organic hybrid modulators

Wolf, Stefan 1; Lauermann, Matthias 1; Schindler, Philipp 2; Ronniger, Gregor 1; Geistert, Kristina 1; Palmer, Robert 2; Koeber, Sebastian 2; Bogaerts, Wim; Leuthold, Jürg 2; Freude, Wolfgang 1; Koos, Christian 1,3
1 Institut für Photonik und Quantenelektronik (IPQ), Karlsruher Institut für Technologie (KIT)
2 Karlsruher Institut für Technologie (KIT)
3 Institut für Mikrostrukturtechnik (IMT), Karlsruher Institut für Technologie (KIT)

Abstract:

We demonstrate generation and transmission of optical signals by directly interfacing highly efficient silicon-organic hybrid (SOH) modulators to binary output ports of an FPGA. Using an SOH Mach-Zehnder modulator (MZM) and an SOH IQ modulator we generate on-off-keying (OOK) and binary phase shift keying (BPSK) signals as well as quadrature phase shift keying (QPSK) and 16-state quadrature amplitude modulation (16QAM) formats. Peak-to-peak voltages amount to only 0.27 Vpp for driving the MZM and 0.41 Vpp for the IQ modulator. Neither digital-to-analog converters (DAC) nor drive amplifiers are required, and the RF energy consumption in the modulator amounts to record-low 18 fJ/bit for 16QAM signaling


Volltext §
DOI: 10.5445/IR/1000054357
Originalveröffentlichung
DOI: 10.1109/JLT.2015.2394511
Scopus
Zitationen: 56
Web of Science
Zitationen: 47
Dimensions
Zitationen: 46

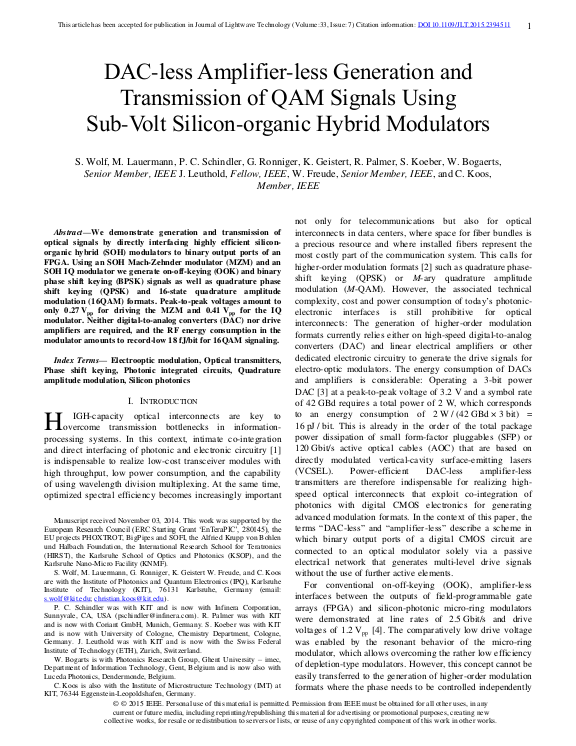

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Photonik und Quantenelektronik (IPQ)
Universität Karlsruhe (TH) – Interfakultative Einrichtungen (Interfakultative Einrichtungen)
Karlsruhe School of Optics & Photonics (KSOP)
Publikationstyp Zeitschriftenaufsatz
Publikationsjahr 2015
Sprache Englisch
Identifikator ISSN: 0733-8724
urn:nbn:de:swb:90-543571
KITopen-ID: 1000054357
Erschienen in Journal of Lightwave Technology
Verlag Optica Publishing Group (OSA)
Band 77
Heft 7
Seiten 1425-1432
Schlagwörter Electrooptic modulation, Optical transmitters, Phase shift keying, Photonic integrated circuits, Quadrature amplitude modulation, Silicon photonics
