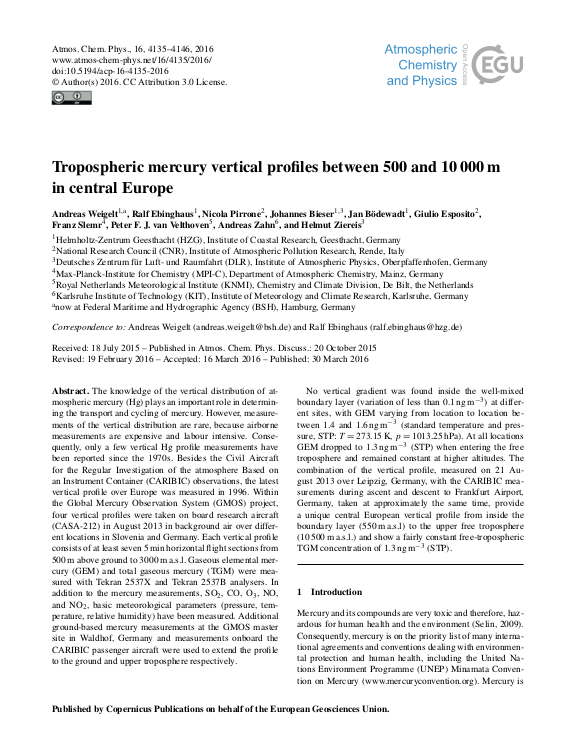

Tropospheric mercury vertical profiles between 500 and 10 000 m in central Europe

The knowledge of the vertical distribution of atmospheric mercury (Hg) plays an important role in determining the transport and cycling of mercury. However, measurements of the vertical distribution are rare, because airborne measurements are expensive and labour intensive. Consequently, only a few vertical Hg profile measurements have been reported since the 1970s. Besides the Civil Aircraft for the Regular Investigation of the atmosphere Based on an Instrument Container (CARIBIC) observations, the latest vertical profile over Europe was measured in 1996. Within the Global Mercury Observation System (GMOS) project, four vertical profiles were taken on board research aircraft (CASA-212) in August 2013 in background air over different locations in Slovenia and Germany. Each vertical profile consists of at least seven 5 min horizontal flight sections from 500 m above ground to 3000 m a.s.l. Gaseous elemental mercury (GEM) and total gaseous mercury (TGM) were measured with Tekran 2537X and Tekran 2537B analysers. In addition to the mercury measurements, SO₂, CO, O₃, NO, and NO₂, basic meteorological parameters (pressure, temperature, relative humidity) have been measured. ... mehrAdditional ground-based mercury measurements at the GMOS master site in Waldhof, Germany and measurements onboard the CARIBIC passenger aircraft were used to extend the profile to the ground and upper troposphere respectively.
No vertical gradient was found inside the well-mixed boundary layer (variation of less than 0.1 ng m$^{-3}$) at different sites, with GEM varying from location to location between 1.4 and 1.6 ng m$^{-3}$ (standard temperature and pressure, STP: T  =  273.15 K, p  =  1013.25 hPa). At all locations GEM dropped to 1.3 ng m$^{-3}$ (STP) when entering the free troposphere and remained constant at higher altitudes. The combination of the vertical profile, measured on 21 August 2013 over Leipzig, Germany, with the CARIBIC measurements during ascent and descent to Frankfurt Airport, Germany, taken at approximately the same time, provide a unique central European vertical profile from inside the boundary layer (550 m a.s.l) to the upper free troposphere (10 500 m a.s.l.) and show a fairly constant free-tropospheric TGM concentration of 1.3 ng m$^{-3}$ (STP).
