Insights into directional scattering : from coupled dipoles to asymmetric dimer nanoantennas

Abass, Aimi 1; Gutsche, Philipp; Maes, Bjorn; Rockstuhl, Carsten 1,2; Martins, Emiliano R.
1 Institut für Nanotechnologie (INT), Karlsruher Institut für Technologie (KIT)
2 Institut für Theoretische Festkörperphysik (TFP), Karlsruher Institut für Technologie (KIT)

Abstract:

Strong and directionally specific forward scattering from optical nanoantennas is of utmost importance for various applications in the broader context of photovoltaics and integrated light sources. Here, we outline a simple yet powerful design principle to perceive a nanoantenna that provides directional scattering into a higher index substrate based on the interference of multiple electric dipoles. A structural implementation of the electric dipole distribution is possible using plasmonic nanoparticles with a fairly simple geometry, i.e. two coupled rectangular nanoparticles, forming a dimer, on top of a substrate. The key to achieve directionality is to choose a sufficiently large size for the nanoparticles. This promotes the excitation of vertical electric dipole moments due to the bi-anisotropy of the nanoantenna. In turn, asymmetric scattering is obtained by ensuring the appropriate phase relation between the vertical electric dipole moments. The scattering strength and angular spread for an optimized nanoantenna can be shown to be broadband and robust against changes in the incidence angle. The scattering directionality is maintained even for an array configuration of the dimer. ... mehr


Volltext §
DOI: 10.5445/IR/1000059464
Originalveröffentlichung
DOI: 10.1364/OE.24.019638
Scopus
Zitationen: 11
Web of Science
Zitationen: 10
Dimensions
Zitationen: 11

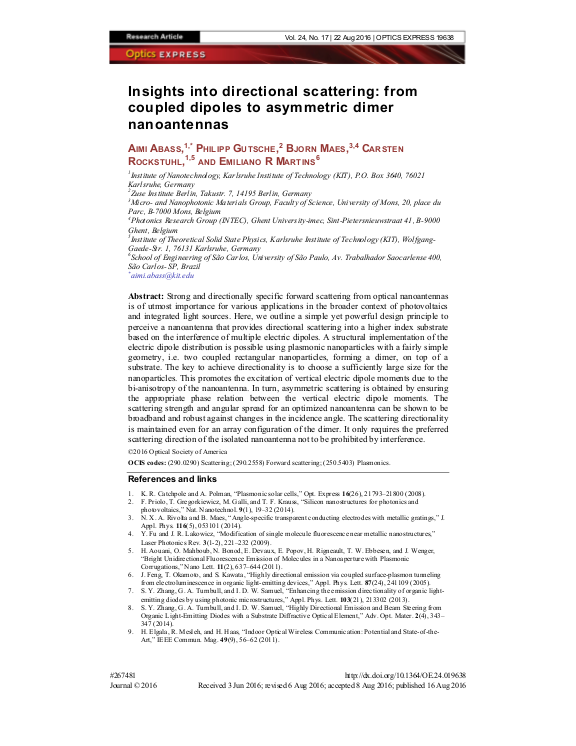

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Nanotechnologie (INT)
Institut für Theoretische Festkörperphysik (TFP)
Publikationstyp Zeitschriftenaufsatz
Publikationsjahr 2016
Sprache Englisch
Identifikator ISSN: 1094-4087
urn:nbn:de:swb:90-594647
KITopen-ID: 1000059464
HGF-Programm 43.23.01 (POF III, LK 01) Advanced Optical Lithography+Microscopy
Erschienen in Optics express
Verlag Optica Publishing Group (OSA)
Band 24
Heft 17
Seiten 19638-19650
Bemerkung zur Veröffentlichung Gefördert durch den KIT-Publikationsfonds
Nachgewiesen in Dimensions
Web of Science
Scopus
