Effect of post-weld heat treatment on microstructure, hardness and low-temperature impact toughness of electron beam welds of NIFS-HEAT-2 and CEA-J57 heats of V–4Ti–4Cr alloy

Tsisar, V. 1; Nagasaka, T.; Flem, M. Le; Yeliseyeva, O.; Konys, J. 1; Muroga, T.
1 Institut für Angewandte Materialien – Angewandte Werkstoffphysik (IAM-AWP), Karlsruher Institut für Technologie (KIT)

Abstract (englisch):

Bead-on-plate electron beam welding in high vacuum atmosphere was applied to the plates of NIFS- HEAT-2 and CEA-J57 heats of V–4Ti–4Cr alloy. Effect of post-weld heat treatment (PWHT) in the temper- ature range 673–1273 K on the hardness, impact toughness at 77 K and microstructure of weld metal was investigated. After PWHT at 773 K, hardness of weld metal slightly decreases from 180 HV 100 (as-welded state) to ∼170 HV 100 while absorbed energy increases up to ∼10 J showing ductile fracture mode. PWHT at 973 K results in re-hardening of weld metal up to ∼180 HV 100 caused by re-precipitation of Ti–C,O,N precipitates and corresponding decreasing absorbed energy to ∼2 J with brittle fracture mode. PWHT in- between 1073–1273 K results in gradual recovery of hardness towards values comparable with those of base metal. Impact toughness (77 K) of weld metal after PWHT at 1073K is not recovered nether to the value in as-welded state nor to that one of base metal.

Volltext §
DOI: 10.5445/IR/1000064008
DOI: 10.1016/j.nme.2016.04.002
Zitationen: 7
Zitationen: 7

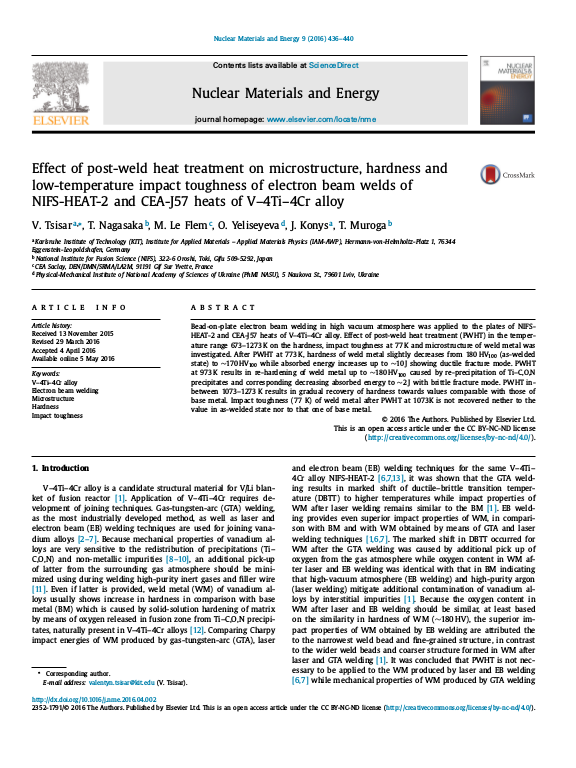

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Angewandte Materialien – Angewandte Werkstoffphysik (IAM-AWP)
Publikationstyp Zeitschriftenaufsatz
Publikationsjahr 2016
Sprache Englisch
Identifikator ISSN: 2352-1791
KITopen-ID: 1000064008
HGF-Programm 32.01.13 (POF III, LK 01) Transmutation: Flüssigmetalltechnologie
Erschienen in Nuclear materials and energy
Verlag Elsevier
Band 9
Seiten 436–440
Schlagwörter V–4Ti–4Cr alloy; Electron beam welding; Microstructure; Hardness; Impact toughness
