Forced flow cooling of HTS CORC cable used in superconducting coil

Vojenčiak, Michal; Šouc, Ján; Gömöry, Fedor

Abstract:

Coils for AC applications or for applications with rapid change of the magnetic fi eld have to be produced with low inductance. This usually requires using a cable instead of a single conductor. One of the concepts applicable for coated conductors is Conductor on Round Core cable (CORC). In this solution coated conductors are helically wound on round former. The former can be braid conductor, solid wire or tube. Last written option offers possibility of partial or full cooling by forced fl ow of coolant inside the tube former. We tested forced fl ow cooling method on 4 m long HTS CORC cable wound to form of small coil with non-vacuum thermal insulation made of aerogel and polyurethane foam. Critical current of the coil cooled by forced fl ow of liquid nitrogen was about 16 % lower than critical current of the same coil cooled by liquid nitrogen bath. From this result we deduced that temperature of super-conductor was elevated about 1 K above liquid nitrogen temperature. In next experiment we have used forced fl ow cold helium gas. In this way we succeed in reduction of the coil temperature below liquid nitrogen temperatures and thus enhancing the coil performance.


Volltext §
DOI: 10.5445/IR/1000076662
Veröffentlicht am 20.11.2017

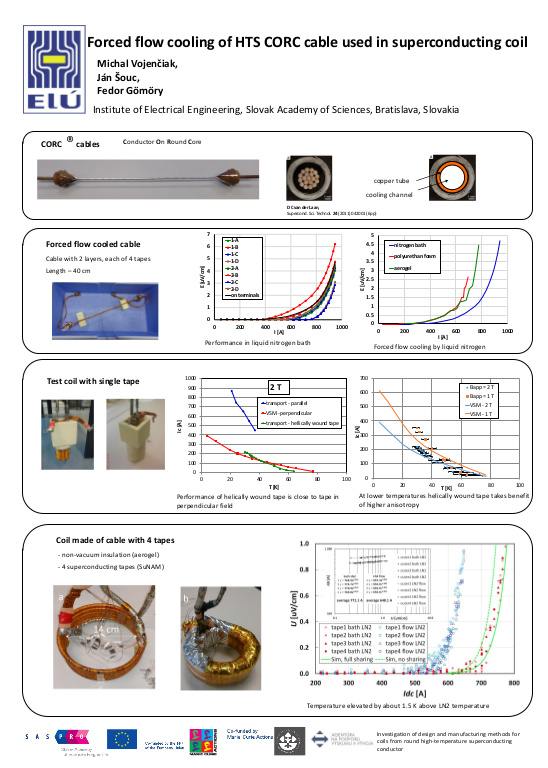

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Technische Physik (ITEP)
Publikationstyp Poster
Publikationsjahr 2017
Sprache Englisch
Identifikator urn:nbn:de:swb:90-766624
KITopen-ID: 1000076662
HGF-Programm 37.06.02 (POF III, LK 01) New Power Network Technology
Veranstaltung 2nd International Workshop on Cooling Systems for HTS Applications (IWC-HTS), Karlsruhe, Germany, 13th - 15th September 2017
Bemerkung zur Veröffentlichung Author affiliation: IEE SAS Bratislava, Slovakia
