Marker-based localization of the Microsoft HoloLens in building models

Hübner, Patrick 1; Weinmann, Martin 1; Wursthorn, Sven 1
1 Institut für Photogrammetrie und Fernerkundung (IPF), Karlsruher Institut für Technologie (KIT)


Mobile augmented reality devices for indoor environments like the Microsoft HoloLens hold potential for the in-situ visualization of building model data. While the HoloLens has sufficient real-time inside-out tracking capacity to provide a spatially correct and stable visualization of virtual content relative to its surroundings, the placement of virtual objects normally has to be done actively by the user. Beyond reliable tracking capacity, augmenting an indoor environment with corresponding building model data requires a one-time localization of the AR platform inside the local coordinate frame of the building model to be visualized. To this aim, we present a simple marker-based localization method for the HoloLens that is sufficient to overlay indoor environments with virtual room-scale model data with a spatial accuracy of few centimeters. Furthermore, an evaluation method suitable for the proposed scenario is presented, that does not rely on the HoloLens “Live Capture” camera which turned out to produce deviant placements of virtual content in relation to the perception of the user wearing the HoloLens device.

Verlagsausgabe §
DOI: 10.5445/IR/1000086686
Veröffentlicht am 17.10.2018
DOI: 10.5194/isprs-archives-XLII-1-195-2018
Zitationen: 19
Zitationen: 23

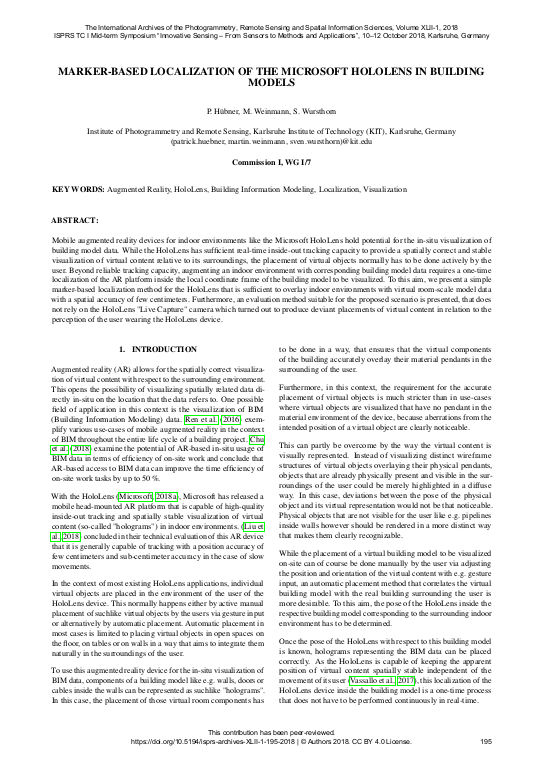

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Photogrammetrie und Fernerkundung (IPF)
KIT-Zentrum Klima und Umwelt (ZKU)
Publikationstyp Proceedingsbeitrag
Publikationsjahr 2018
Sprache Englisch
Identifikator ISSN: 2194-9034
KITopen-ID: 1000086686
Erschienen in ISPRS TC I Mid-term Symposium “Innovative Sensing – From Sensors to Methods and Applications"
Verlag International Society for Photogrammetry and Remote Sensing (ISPRS)
Seiten 195–202
Serie The International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences ; 42-1
Vorab online veröffentlicht am 26.09.2018
Schlagwörter Augmented Reality, HoloLens, Building Information Modeling, Localization, Visualization
