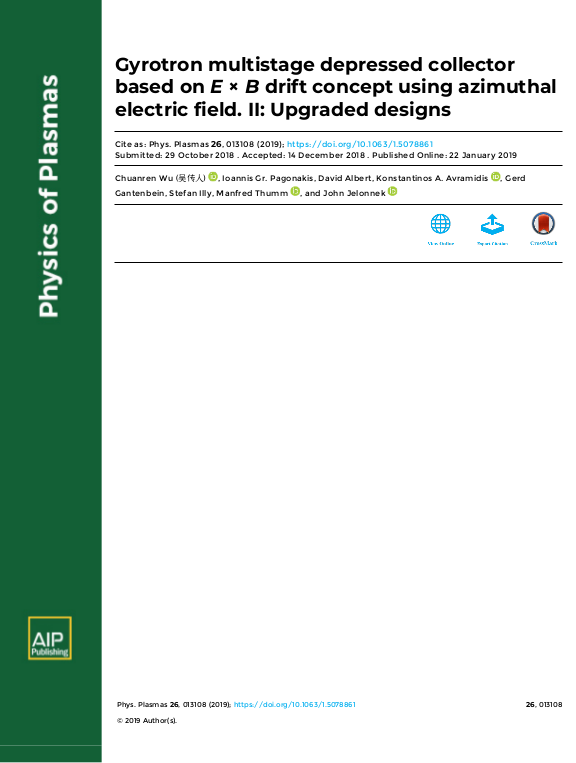

Gyrotron multistage depressed collector based on E × B drift concept using azimuthal electric field. II: Upgraded designs

Multistage Depressed Collectors (MDCs) are nontrivial for high-frequency gyrotrons. A basic conceptual design of an E x B MDC using azimuthal electric fields was proposed in Part I of this series. In the present work, several upgraded design proposals based on the basic one will be elaborated. These proposals will significantly reduce the back-stream of electrons, which was the main drawback of the basic design proposal. Another upgraded design proposal will shrink the length and maximal radius of the MDC to be only a fraction of its full-length version. A conceptual design of the final MDC proposal will be given at the end.
