Current Mode Control of a Series LC Converter Supporting Constant Current, Constant Voltage (CCCV)

Heidinger, Michael; Xia, Qihao; Simon, Christoph; Denk, Fabian; Eizaguirre, Santiago; Kling, Rainer; Heering, Wolfgang

Abstract (englisch):
This paper introduces a control algorithm for soft-switching series LC converters. The conventional voltage-to-voltage controller is split into a master and a slave controller. The master controller implements constant current, constant voltage (CCCV) control, required for demanding applications, for example, lithium battery charging or laboratory power supplies. It defines the set-current for the open-loop current slave controller, which generates the pulse width modulation (PWM) parameters. The power supply achieves fast large-signal responses, e.g., from 5 V to 24 V, where 95% of the target value is reached in less than 400 s. The design is evaluated extensively in simulation and on a prototype. A match between simulation and measurement is achieved.

Open Access Logo

Verlagsausgabe §
DOI: 10.5445/IR/1000097759
Veröffentlicht am 26.08.2019

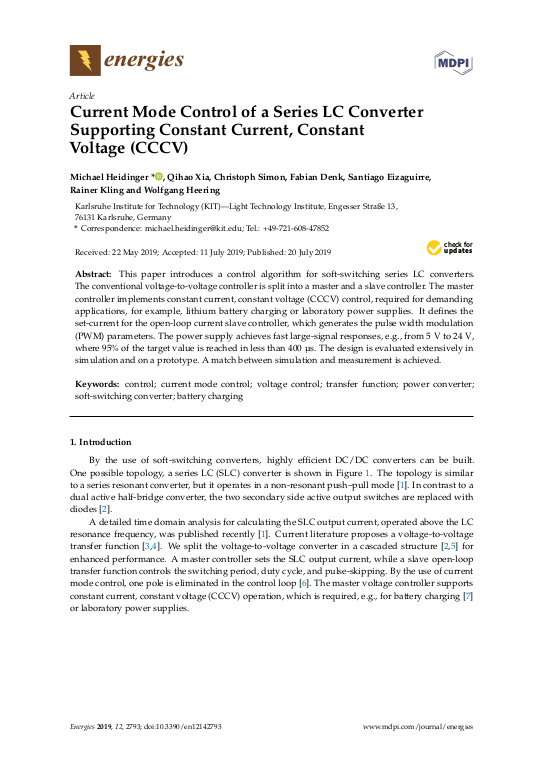

Cover der Publikation
Zugehörige Institution(en) am KIT Lichttechnisches Institut (LTI)
Publikationstyp Zeitschriftenaufsatz
Publikationsjahr 2019
Sprache Englisch
Identifikator ISSN: 1996-1073
KITopen-ID: 1000097759
Erschienen in Energies
Band 12
Heft 14
Seiten 2793
Bemerkung zur Veröffentlichung Gefördert durch den KIT-Publikationsfonds
Vorab online veröffentlicht am 20.07.2019
Nachgewiesen in Scopus
Web of Science
