A novel ppm-precise absolute calibration method for precision high-voltage dividers

Rest, O.; Winzen, D.; Bauer, S.; Berendes, R.; Meisner, J.; Thümmler, Thomas ORCID iD icon 1; Wüstling, Sascha ORCID iD icon 2; Weinheimer, C.
1 Institut für Kernphysik (IKP), Karlsruher Institut für Technologie (KIT)
2 Institut für Prozessdatenverarbeitung und Elektronik (IPE), Karlsruher Institut für Technologie (KIT)

Abstract:

The most common method to measure direct current high voltage (HV) down to the ppm-level is to use resistive high-voltage dividers. Such devices scale the HV into a range where it can be compared with precision digital voltmeters to reference voltages sources, which can be traced back to Josephson voltage standards. So far the calibration of the scale factors of HV dividers for voltages above 1 kV could only be done at metrology institutes and sometimes involves round-robin tests among several institutions to get reliable results. Here we present a novel absolute calibration method based on the measurement of a differential scale factor, which can be performed with commercial equipment and outside metrology institutes. We demonstrate that reproducible measurements up to 35 kV can be performed with relative uncertainties below
1 · 10$^{-6}$. This method is not restricted to metrology institutes and offers the possibility to determine the linearity of high-voltage dividers for a wide range of applications.


Verlagsausgabe §
DOI: 10.5445/IR/1000098155
Veröffentlicht am 09.09.2019
Originalveröffentlichung
DOI: 10.1088/1681-7575/ab2997
Scopus
Zitationen: 12
Web of Science
Zitationen: 12
Dimensions
Zitationen: 12

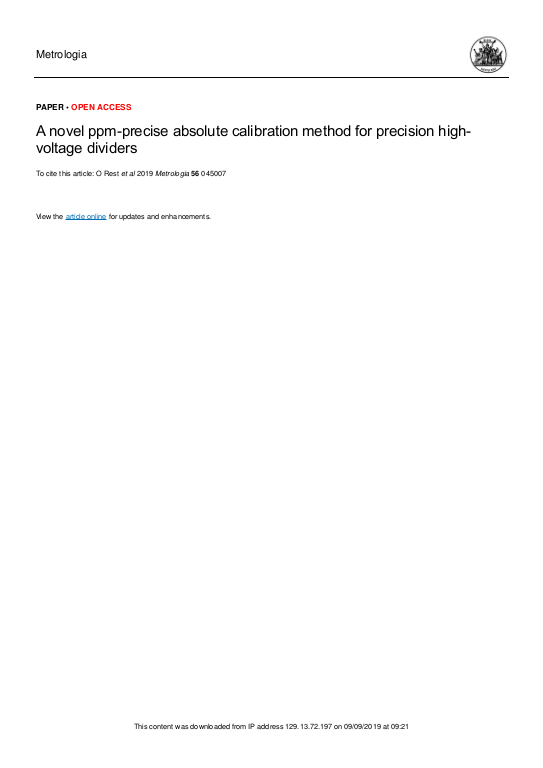

Cover der Publikation
