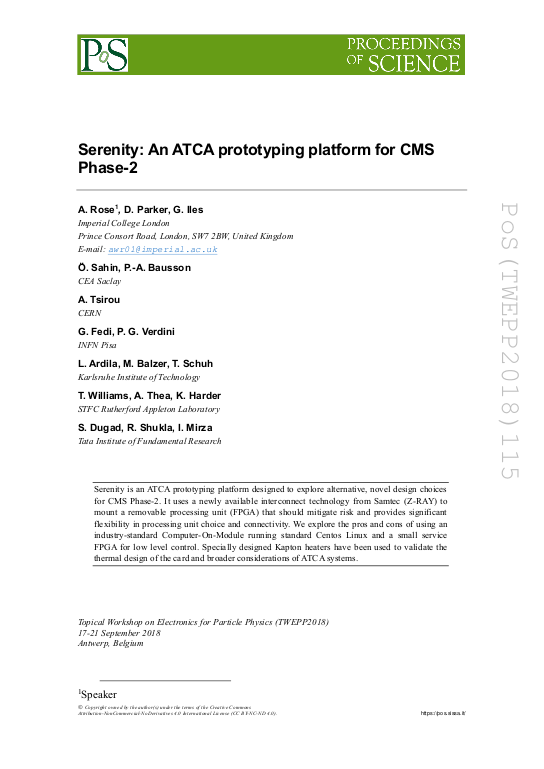

Serenity: An ATCA prototyping platform for CMS Phase-2
Rose, A.; Parker, D.; Iles, G.; Sahin, Ö.; Bausson, P.-A.; Tsirou, A.; Fedi, G.; Verdini, P. G.; Ardila, L.
1; Balzer, M. 1; Schuh, T. 1; Williams, T.; Thea, A.; Harder, K.; Dugad, S.; Shukla, R.; Mirza, I.
1 Karlsruher Institut für Technologie (KIT)
1; Balzer, M. 1; Schuh, T. 1; Williams, T.; Thea, A.; Harder, K.; Dugad, S.; Shukla, R.; Mirza, I.1 Karlsruher Institut für Technologie (KIT)
Abstract:
Serenity is an ATCA prototyping platform designed to explore alternative, novel design choices
for CMS Phase-2. It uses a newly available interconnect technology from Samtec (Z-RAY) to
mount a removable processing unit (FPGA) that should mitigate risk and provides significant
flexibility in processing unit choice and connectivity. We explore the pros and cons of using an
industry-standard Computer-On-Module running standard Centos Linux and a small service
FPGA for low level control. Specially designed Kapton heaters have been used to validate the
thermal design of the card and broader considerations of ATCA systems.
for CMS Phase-2. It uses a newly available interconnect technology from Samtec (Z-RAY) to
mount a removable processing unit (FPGA) that should mitigate risk and provides significant
flexibility in processing unit choice and connectivity. We explore the pros and cons of using an
industry-standard Computer-On-Module running standard Centos Linux and a small service
FPGA for low level control. Specially designed Kapton heaters have been used to validate the
thermal design of the card and broader considerations of ATCA systems.
| Zugehörige Institution(en) am KIT | Institut für Prozessdatenverarbeitung und Elektronik (IPE) |
| Publikationstyp | Proceedingsbeitrag |
| Publikationsjahr | 2018 |
| Sprache | Englisch |
| Identifikator | ISSN: 1824-8039 KITopen-ID: 1000100194 |
| Erschienen in | Topical Workshop on Electronics for Particle Physics (TWEPP2018) - Trigger: 17-21 September 2018, Antwerp, Belgium |
| Veranstaltung | Topical Workshop on Electronics for Particle Physics (TWEPP 2018), Antwerpen, Belgien, 17.09.2018 – 21.09.2018 |
| Verlag | Scuola Internazionale Superiore di Studi Avanzati (SISSA) |
| Serie | Proceedings of Science (PoS) ; 343 |
