Phase Transformation-Induced Changes in Microstructure and Residual Stresses in Thermally Sprayed MnCoFeO4 Protective Coatings

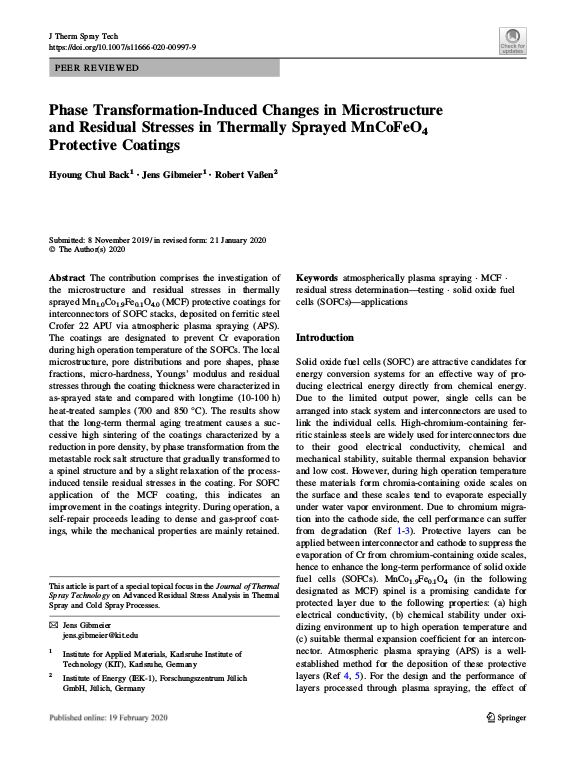

The contribution comprises the investigation of the microstructure and residual stresses in thermally sprayed Mn$_{1.0}$Co$_{1.9}$Fe$_{0.1}$O$_{4.0}$ (MCF) protective coatings for interconnectors of SOFC stacks, deposited on ferritic steel Crofer 22 APU via atmospheric plasma spraying (APS). The coatings are designated to prevent Cr evaporation during high operation temperature of the SOFCs. The local microstructure, pore distributions and pore shapes, phase fractions, micro-hardness, Youngs’ modulus and residual stresses through the coating thickness were characterized in as-sprayed state and compared with longtime (10-100 h) heat-treated samples (700 and 850 C). The results show that the long-term thermal aging treatment causes a successive high sintering of the coatings characterized by a reduction in pore density, by phase transformation from the metastable rock salt structure that gradually transformed to a spinel structure and by a slight relaxation of the processinduced tensile residual stresses in the coating. For SOFC application of the MCF coating, this indicates an improvement in the coatings integrity. During operation, a self-repair proceeds leading to dense and gas-proof coatings, while the mechanical properties are mainly retained.
