Improved Mode Selection in Coaxial Cavities for Subterahertz Second-Harmonic Gyrotrons

Shcherbinin, Vitalii I. 1; Moskvitina, Yuliya K.; Avramidis, Konstantinos A. 1; Jelonnek, John 1
1 Institut für Hochleistungsimpuls- und Mikrowellentechnik (IHM), Karlsruher Institut für Technologie (KIT)

Abstract (englisch):

A coaxial metal rod with partial dielectric coating is considered as a means for efficient suppression of all volume competing modes in cavities for second-harmonic gyrotrons operated in whispering gallery modes. The rod radius is selected small enough to have only a slight effect on operating mode, which therefore remains insensitive to fabrication tolerances and a misalignment of the coaxial insert. By contrast, for the competing modes such a rod is shown to reduce the effective cavity length, thereby greatly increasing the starting currents. Such a method of mode selection is demonstrated to be more versatile, when compared to that provided by a tapered coaxial conductor. The advantage of a dielectric-coated coaxial insert is illustrated by the example of a cavity for a 100-kW 300-GHz pulsed gyrotron operated in the second-harmonic mode.


Postprint §
DOI: 10.5445/IR/1000120635
Veröffentlicht am 25.01.2022
Originalveröffentlichung
DOI: 10.1109/TED.2020.2996179
Scopus
Zitationen: 16
Dimensions
Zitationen: 17

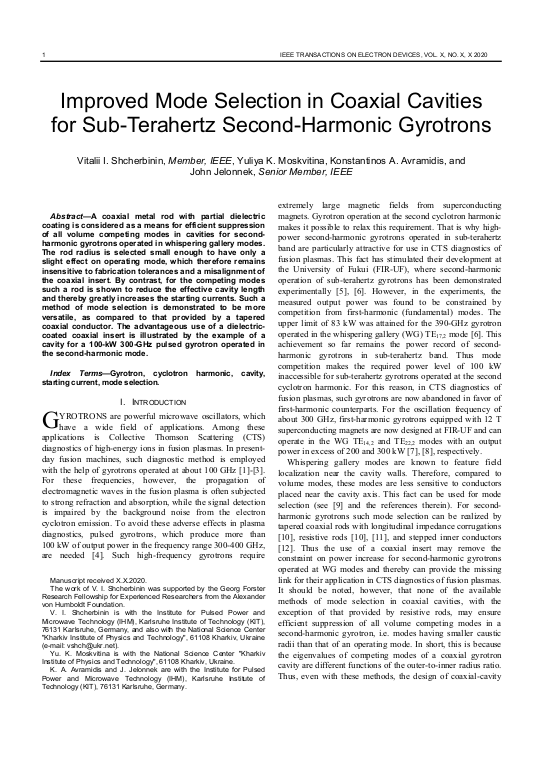

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Hochleistungsimpuls- und Mikrowellentechnik (IHM)
Publikationstyp Zeitschriftenaufsatz
Publikationsmonat/-jahr 07.2020
Sprache Englisch
Identifikator ISSN: 0018-9383, 1557-9646
KITopen-ID: 1000120635
HGF-Programm 31.03.02 (POF III, LK 01) Plasma Heizsysteme
Erschienen in IEEE transactions on electron devices
Verlag Institute of Electrical and Electronics Engineers (IEEE)
Band 67
Heft 7
Seiten 2933–2939
