Design of Microwave Pulse Compressors Using Small Form-Factor Waveguide Cavities

Ioannidis, Z. C.; Savaidis, S. P.; Mitilineos, S. A.; Livieratos, S.; Stathopoulos, N. A.

Abstract:
A microwave pulse compressor (MPC) consisting of an iris, a straight waveguide section, and a T-junction can be used in order to convert a long pulse with lower power to a shorter pulse with a higher power. A significant compression gain can be achieved, provided that the system is designed precisely. The duration of the compressed pulse is proportional to the cavity length, thus imposing a constraint on the development of mobile systems. In this work, we present the circuit/transmission-line-based design methodology that we follow in order to fold the cavity (while retaining the same electrical length) by using T-junction turns. For example, we design a 1.3-GHz folded compressor and compare its performance to the corresponding one of a straight-cavity compressor. The 3-D full-wave simulations with CST Studio Suite and experimental measurements with the developed compressor confirm the accuracy of the proposed design methodology.


Postprint §
DOI: 10.5445/IR/1000121198
Veröffentlicht am 11.12.2020
Originalveröffentlichung
DOI: 10.1109/TMTT.2020.2996218
Dimensions
Zitationen: 1

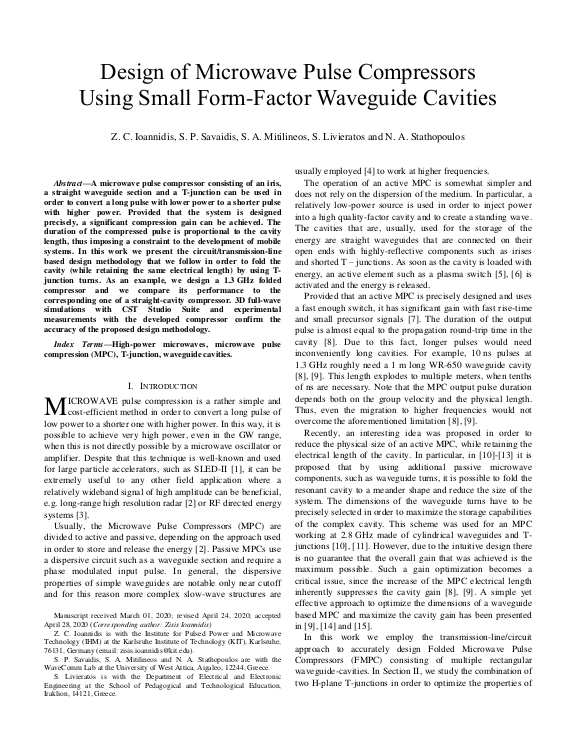

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Hochleistungsimpuls- und Mikrowellentechnik (IHM)
Publikationstyp Zeitschriftenaufsatz
Publikationsmonat/-jahr 08.2020
Sprache Englisch
Identifikator ISSN: 0018-9480, 1557-9670
KITopen-ID: 1000121198
HGF-Programm 31.03.02 (POF III, LK 01) Plasma Heizsysteme
Erschienen in IEEE transactions on microwave theory and techniques
Verlag Institute of Electrical and Electronics Engineers (IEEE)
Band 68
Heft 8
Seiten 3255-3262
Vorab online veröffentlicht am 02.06.2020
Nachgewiesen in Dimensions
