Atlaspix3: A high voltage CMOS sensor chip designed for ATLAS Inner Tracker

Prathapan, M. 1; Schimassek, R. 1; Benoit, M.; Casanova, R.; Ehrler, F. 1; Meneses, A.; Pangaud, P.; Sultan, D. M. S.; Vilella, E.; Weber, A. 1; Wong, W.; Zhang, H. 1; Perić, I. ORCID iD icon 1
1 Karlsruher Institut für Technologie (KIT)


ATLASpix3 is a 2 x 2 cm$^{2}$ high voltage CMOS sensor chip designed to meet the specifications of outer layers of ATLAS inner tracker. It is compatible with the hybrid pixel sensor ASIC RD53A in terms of electronic interface and geometry. ATLASpix3 is a depleted monolithic CMOS pixel detector which allows the construction of quad modules of the same size as that of hybrid sensors. The readout scheme can be externally configured as triggered or triggerless column drain readout. The hit information is transmitted through a 1.28 Gbit/s serial link. The interface is based on a single command input that is used for providing clock, trigger and configuration commands. This contribution summarizes the detector architecture with focus on the design of its readout circuitry. In addition, simulation results obtained using ReadOut Modelling Environment (ROME), that led to the design of the readout system are discussed.

Verlagsausgabe §
DOI: 10.5445/IR/1000121410
Veröffentlicht am 22.07.2020
DOI: 10.22323/1.370.0010
Zitationen: 1
Zitationen: 3

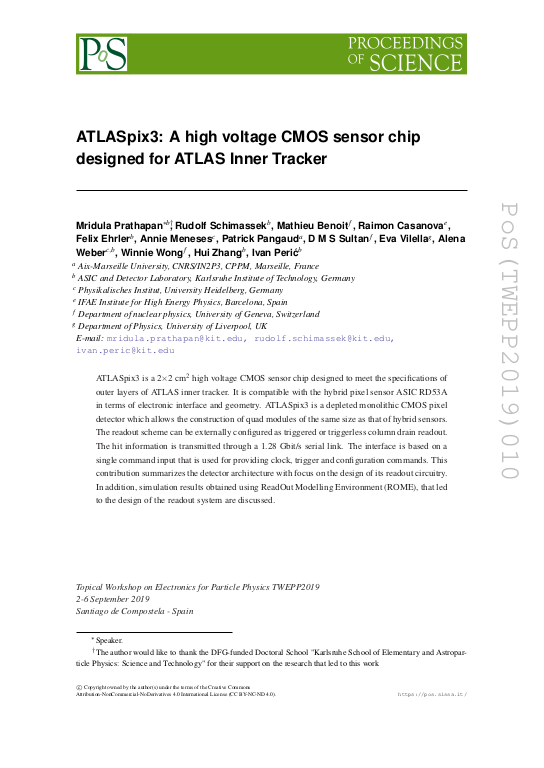

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Prozessdatenverarbeitung und Elektronik (IPE)
Publikationstyp Proceedingsbeitrag
Publikationsjahr 2019
Sprache Englisch
Identifikator ISSN: 1824-8039
KITopen-ID: 1000121410
HGF-Programm 54.02.03 (POF III, LK 01) ASICs und Integrationstechnologien
Erschienen in Proceedings of Topical Workshop on Electronics for Particle Physics, TWEPP 2019, Santiago de Compostela, Spain, 2 - 6 September 2019
Veranstaltung Topical Workshop on Electronics for Particle Physics (TWEPP 2019), Santiago de Compostela, Spanien, 02.09.2019 – 06.09.2019
Seiten Code 160323
Serie Proceedings of Science ; 370
Nachgewiesen in Dimensions
