X-SPEC: a 70 eV to 15 keV undulator beamline for X-ray and electron spectroscopies

Weinhardt, Lothar 1,2; Steininger, Ralph 1; Kreikemeyer-Lorenzo, Dagmar 1; Mangold, Stefan 1; Hauschild, Dirk 1,2; Batchelor, David 1; Spangenberg, Thomas 1; Heske, Clemens 1,2
1 Institut für Photonenforschung und Synchrotronstrahlung (IPS), Karlsruher Institut für Technologie (KIT)
2 Institut für Technische Chemie und Polymerchemie (ITCP), Karlsruher Institut für Technologie (KIT)

Abstract:

X-SPEC is a high-flux spectroscopy beamline at the KIT (Karlsruhe Institute of Technology) Synchrotron for electron and X-ray spectroscopy featuring a wide photon energy range. The beamline is equipped with a permanent magnet undulator with two magnetic structures of different period lengths, a focusing variable-line-space plane-grating monochromator, a double-crystal monochromator and three Kirkpatrick–Baez mirror pairs. By selectively moving these elements in or out of the beam, X-SPEC is capable of covering an energy range from 70 eV up to 15 keV. The flux of the beamline is maximized by optimizing the magnetic design of the undulator, minimizing the number of optical elements and optimizing their parameters. The beam can be focused into two experimental stations while maintaining the same spot position throughout the entire energy range. The first experimental station is optimized for measuring solid samples under ultra-high-vacuum conditions, while the second experimental station allows in situ and operando studies under ambient conditions. Measurement techniques include X-ray absorption spectroscopy (XAS), extended X-ray absorption fine structure (EXAFS), photoelectron spectroscopy (PES) and hard X-ray PES (HAXPES), as well as X-ray emission spectroscopy (XES) and resonant inelastic X-ray scattering (RIXS).


Verlagsausgabe §
DOI: 10.5445/IR/1000129628
Veröffentlicht am 12.02.2021
Originalveröffentlichung
DOI: 10.1107/S1600577520016318
Scopus
Zitationen: 3
Web of Science
Zitationen: 3
Dimensions
Zitationen: 3

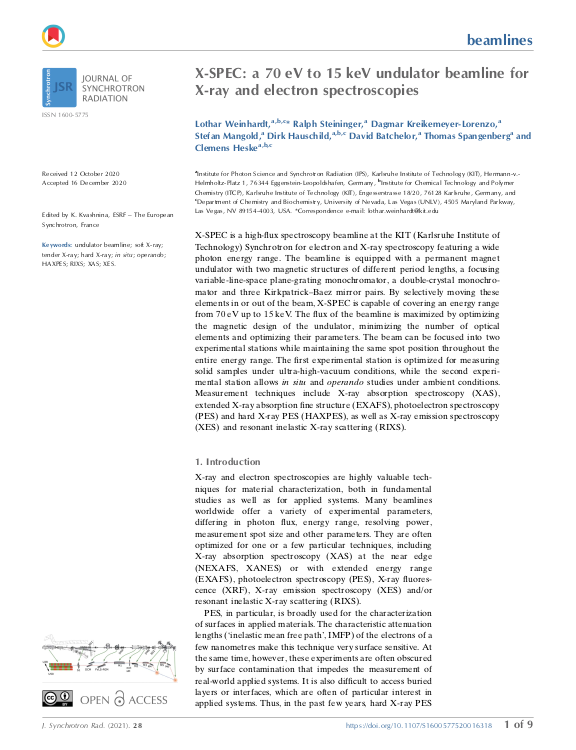

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Photonenforschung und Synchrotronstrahlung (IPS)
Institut für Technische Chemie und Polymerchemie (ITCP)
Publikationstyp Zeitschriftenaufsatz
Publikationsmonat/-jahr 03.2021
Sprache Englisch
Identifikator ISSN: 1600-5775
KITopen-ID: 1000129628
HGF-Programm 56.12.11 (POF IV, LK 01) Materials - Quantum, Complex and Functional
Erschienen in Journal of synchrotron radiation
Verlag International Union of Crystallography
Band 28
Heft Part2
Seiten 609-617
Vorab online veröffentlicht am 10.02.2021
Schlagwörter undulator beamline, soft X-ray, tender X-ray, hard X-ray, in situ, operando, HAXPES, RIXS, XAS, XES.
