Self-assembly of graphene oxide and cellulose nanocrystals into continuous filament via interfacial nanoparticle complexation

Zhang, Kaitao; Ketterle, Lukas 1,2; Järvinen, Topias; Lorite, Gabriela Simone; Hong, Shu; Liimatainen, Henrikki
1 Fakultät für Chemieingenieurwesen und Verfahrenstechnik (CIW), Karlsruher Institut für Technologie (KIT)
2 Institut für Mechanische Verfahrenstechnik und Mechanik (MVM), Karlsruher Institut für Technologie (KIT)

Abstract:

The present work demonstrates the spinning of conductive filaments from oppositely charged nano-scale entities, i.e., cationic cellulose nanocrystals (CNC) and anionic graphene oxide (GO), via interfacial nanoparticle complexation. Especially, the role of CNC and GO concentration in filament formation was investigated. Moreover, the chemical structure, morphology and composition of formed CNC/GO composite filaments were further characterized. The positively charged CNC formed firstly a complex film with negatively charged GO flake and then the complexed structures were further assembled into macroscale hybrid filament (diameter about 20 to 50 μm). After chemical reduction of the hybrid filament, conductive filaments with an average tensile strength of 109 ± 8 MPa and electrical conductivity of 3298 ± 167 S/m were obtained. The presented approach provides a new pathway to understand the interaction of GO and nanocellulose, and to design macroscopic, assembled and functionalized architectures of GO and nanocellulose composites.


Verlagsausgabe §
DOI: 10.5445/IR/1000130097
Veröffentlicht am 26.02.2021
Originalveröffentlichung
DOI: 10.1016/j.matdes.2020.108791
Scopus
Zitationen: 21
Web of Science
Zitationen: 18
Dimensions
Zitationen: 22

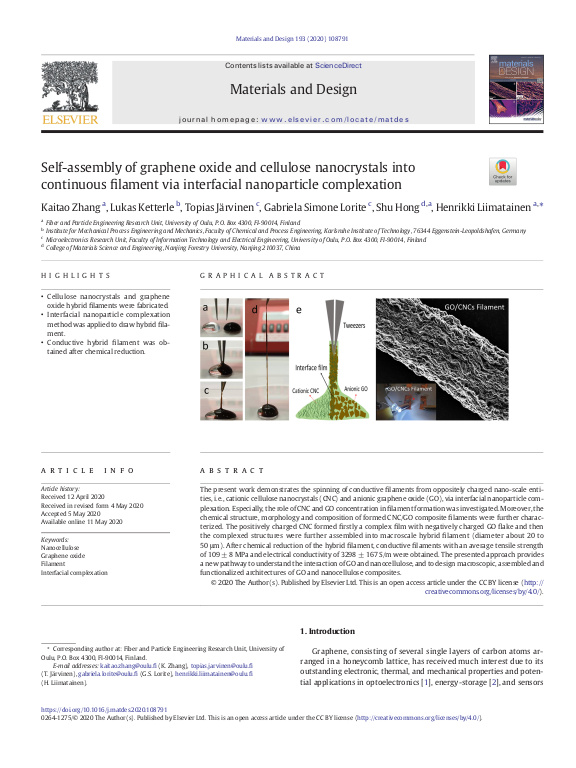

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Mechanische Verfahrenstechnik und Mechanik (MVM)
Publikationstyp Zeitschriftenaufsatz
Publikationsmonat/-jahr 08.2020
Sprache Englisch
Identifikator ISSN: 0264-1275
KITopen-ID: 1000130097
Erschienen in Materials and design
Verlag Elsevier
Band 193
Seiten Art.-Nr.:108791
