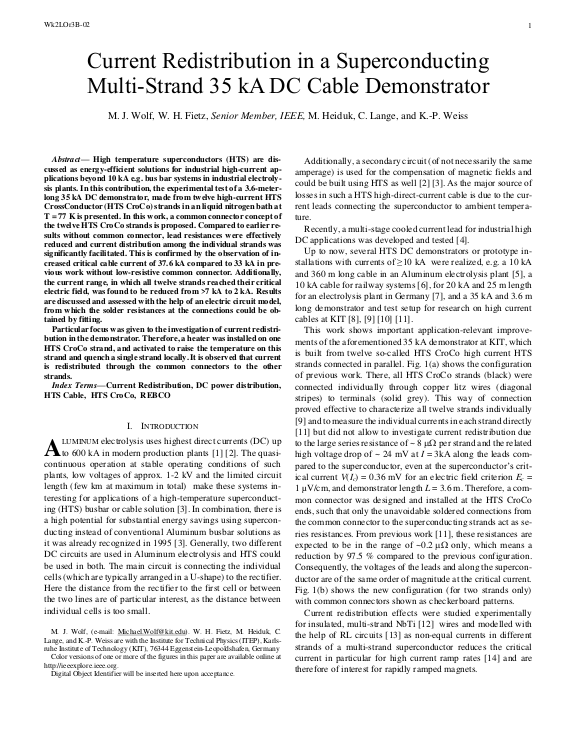

Current Redistribution in a Superconducting Multi-Strand 35 kA DC Cable Demonstrator

High temperature superconductors (HTS) are discussed as energy-efficient solutions for industrial high-current applications beyond 10 kA e.g., bus bar systems in industrial electrolysis plants. In this contribution, the experimental test of a 3.6-meter-long 35 kA DC demonstrator, made from twelve high-current HTS CrossConductor (HTS CroCo) strands in an liquid nitrogen bath at T = 77 K is presented. In this work, a common connector concept of the twelve HTS CroCo strands is proposed. Compared to earlier results without common connector, lead resistances were effectively reduced and current distribution among the individual strands was significantly facilitated. This is confirmed by the observation of increased critical cable current of 37.6 kA compared to 33 kA in previous work without low-resistive common connector. Additionally, the current range, in which all twelve strands reached their critical electric field, was found to be reduced from >7 kA to 2 kA. Results are discussed and assessed with the help of an electric circuit model, from which the solder resistances at the connections could be obtained by fitting. Particular focus was given to the investigation of current redistribution in the demonstrator. ... mehrTherefore, a heater was installed on one HTS CroCo strand, and activated to raise the temperature on this strand and quench a single strand locally. It is observed that current is redistributed through the common connectors to the other strands.
