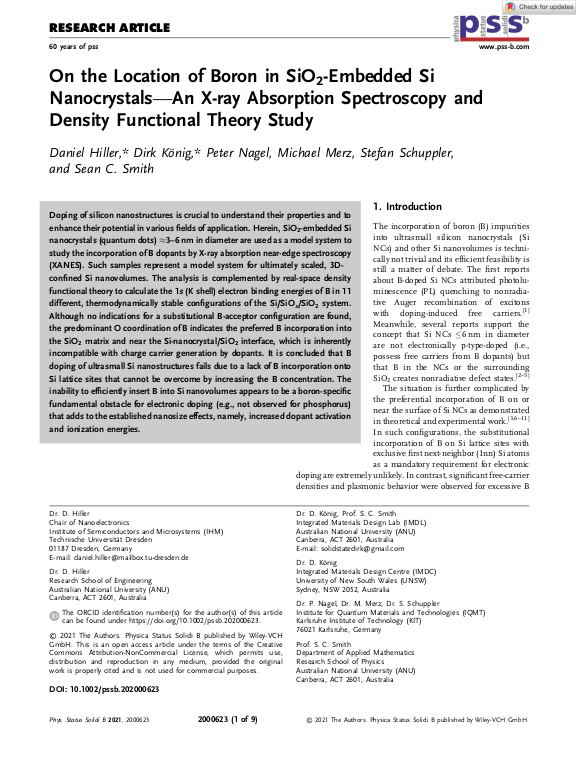

On the Location of Boron in SiO2‐embedded Si Nanocrystals – An X‐ray Absorption Spectroscopy and Density Functional Theory Study

Doping of silicon nanostructures is crucial to understand their properties and to enhance their potential in various fields of application. Herein, SiO2-embedded Si nanocrystals (quantum dots) ≈3–6 nm in diameter are used as a model system to study the incorporation of B dopants by X-ray absorption near-edge spectroscopy (XANES). Such samples represent a model system for ultimately scaled, 3D-confined Si nanovolumes. The analysis is complemented by real-space density functional theory to calculate the 1s (K shell) electron binding energies of B in 11 different, thermodynamically stable configurations of the Si/SiOx/SiO2 system. Although no indications for a substitutional B-acceptor configuration are found, the predominant O coordination of B indicates the preferred B incorporation into the SiO2 matrix and near the Si-nanocrystal/SiO2 interface, which is inherently incompatible with charge carrier generation by dopants. It is concluded that B doping of ultrasmall Si nanostructures fails due to a lack of B incorporation onto Si lattice sites that cannot be overcome by increasing the B concentration. The inability to efficiently insert B into Si nanovolumes appears to be a boron-specific fundamental obstacle for electronic doping (e.g., not observed for phosphorus) that adds to the established nanosize effects, namely, increased dopant activation and ionization energies.
