Describing Road Booming Noise with a Hybrid Simulation Model Using a Time Segmentation of the Excitation Load Approach

Herrmann, Michael ORCID iD icon; Kralicek, Jan; Stein, Wolfgang; Gauterin, Frank ORCID iD icon

Abstract:

One of the most important goals in vehicle acoustics is to describe the NVH behavior of a vehicle at sound pressure level using simulation models at an early stage of development. Different simulation models and methods are used for this purpose. To balance the advantages and disadvantages of the different methods, it is important to combine the simulation models. For the virtual description of the road booming noise behavior of a vehicle passing a rough road, we use a multibody simulation model excited with the elevation profile of the road in the time domain. To calculate the sound pressure inside the vehicle, the internal chassis forces of the multibody simulation model are combined with a finite element body model including the air cavity inside the cabin. The methodology for combining the chassis forces and body transfer functions to calculate the sound pressure is first validated using test data and then applied to the simulation data. The correlation of the calculated sound pressure based on test data (ρ=0.96) and based on simulation data (ρ=0.90) compared to a microphone measurement is very high.


Verlagsausgabe §
DOI: 10.5445/IR/1000136224
Veröffentlicht am 06.08.2021
Originalveröffentlichung
DOI: 10.3390/vehicles3030028
Scopus
Zitationen: 1
Dimensions
Zitationen: 1

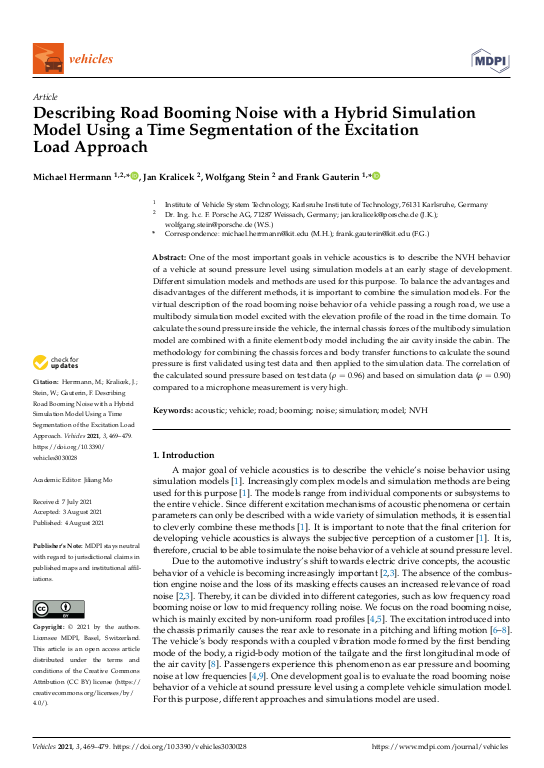

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Fahrzeugsystemtechnik (FAST)
Publikationstyp Zeitschriftenaufsatz
Publikationsjahr 2021
Sprache Englisch
Identifikator ISSN: 2624-8921
KITopen-ID: 1000136224
Erschienen in Vehicles
Verlag MDPI
Band 3
Heft 3
Seiten 469–479
Bemerkung zur Veröffentlichung Gefördert durch den KIT-Publikationsfonds
Vorab online veröffentlicht am 04.08.2021
Schlagwörter acoustic, vehicle, road, booming, noise, simulation, model, NVH
