Dual-Band Transmitter and Receiver with Bowtie-Antenna in 0.13 μm SiGe BiCMOS for Gas Spectroscopy at 222 - 270 GHz

Schmalz, K.; Rothbart, N.; Gluck, A.; Eissa, M. H.; Mausolf, T.; Turkmen, E. 1; Yilmaz, S. B.; Hubers, H.
1 Institut für Hochfrequenztechnik und Elektronik (IHE), Karlsruher Institut für Technologie (KIT)

Abstract:

This paper presents a transmitter (TX) and a receiver (RX) with bowtie-antenna and silicon lens for gas spectroscopy at 222-270 GHz, which are fabricated in IHP’s 0.13 μm SiGe BiCMOS technology. The TX and RX use two integrated local oscillators for 222 – 256 GHz and 250 – 270 GHz, which are switched for dual-band operation. Due to its directivity of about 27 dBi, the single integrated bowtie-antenna with silicon lens enables an EIRP of about 25 dBm for the TX, and therefore a considerably higher EIRP for the 2-band TX compared to previously reported systems. The double sideband noise temperature of the RX is 20,000 K (18.5 dB noise figure) as measured by the Y-factor method. Absorption spectroscopy of gaseous methanol is used as a measure for the performance of the gas spectroscopy system with TX- and RX-modules.


Verlagsausgabe §
DOI: 10.5445/IR/1000137759
Veröffentlicht am 23.09.2021
Originalveröffentlichung
DOI: 10.1109/ACCESS.2021.3110210
Scopus
Zitationen: 16
Web of Science
Zitationen: 13
Dimensions
Zitationen: 15

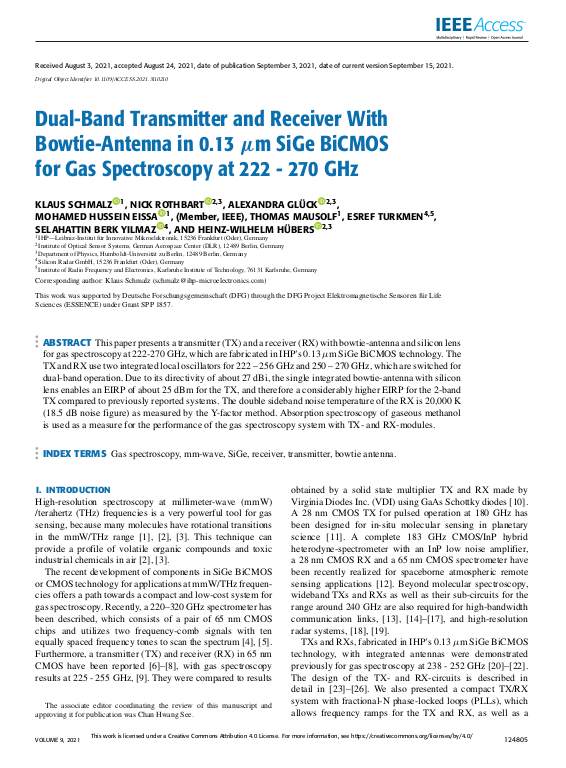

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Hochfrequenztechnik und Elektronik (IHE)
Publikationstyp Zeitschriftenaufsatz
Publikationsjahr 2021
Sprache Englisch
Identifikator ISSN: 2169-3536
KITopen-ID: 1000137759
Erschienen in IEEE Access
Verlag Institute of Electrical and Electronics Engineers (IEEE)
Band 9
Seiten 124805 - 124816
