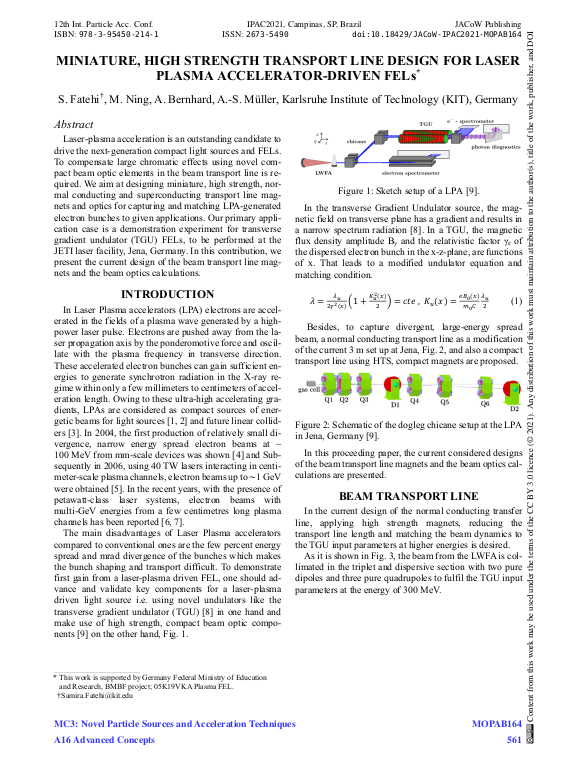

Miniature, High Strength Transport Line Design for Laser Plasma Accelerator-Driven FELs

Laser-plasma acceleration is an outstanding candidate to drive the next-generation compact light sources and FELs. To compensate large chromatic effects using novel compact beam optic elements in the beam transport line is required. We aim at designing miniature, high strength, normal conducting and superconducting transport line magnets and optics for capturing and matching LPA-generated electron bunches to given applications. Our primary application case is a demonstration experiment for transverse gradient undulator (TGU) FELs, to be performed at the JETI laser facility, Jena, Germany. In this contribution, we present the current design of the beam transport line magnets and the beam optics calculations.
