Split Ring Resonator Experiment - Simulation Results

Schäfer, Jens; Härer, B. ORCID iD icon; Malygin, A.; Müller, Anke-Susanne ORCID iD icon; Nabinger, M.; Nasse, M. J.; Schmelzer, T.; Schuh, M. ORCID iD icon; Windbichler, T.


FLUTE (Ferninfrarot Linac- Und Test-Experiment) is a compact linac-based test facility for accelerator and diagnostics R&D. An example for a new accelerator diagnostics tool currently studied at FLUTE is the split-ring-resonator (SRR) experiment, which aims to measure the longitudinal bunch profile of fs-scale electron bunches. Laser-generated THz radiation is used to excite a high frequency oscillating electromagnetic field in the SRR. Particles passing through the SRR gap are time-dependently deflected in the vertical plane, which allows a vertical streaking of an electron bunch. This principle allows a diagnosis of the longitudinal bunch profile in the femtosecond time domain and will be tested at FLUTE. This contribution presents an overview of the SRR experiment and the results of various tracking simulations for different scenarios as a function of laser pulse length and bunch charge. Based on these results possible working points for the experiments at FLUTE will be proposed.

Verlagsausgabe §
DOI: 10.5445/IR/1000138580
Veröffentlicht am 05.10.2021
DOI: 10.18429/JACoW-IPAC2021-MOPAB280

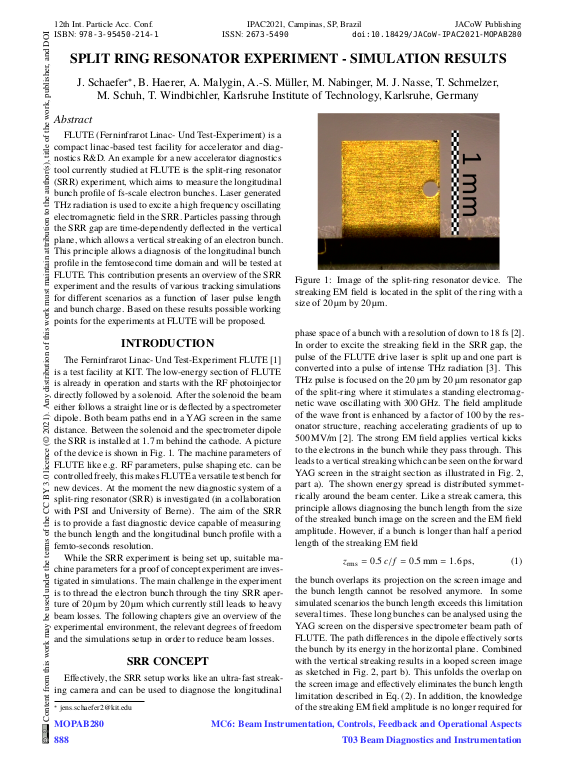

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Beschleunigerphysik und Technologie (IBPT)
Laboratorium für Applikationen der Synchrotronstrahlung (LAS)
Publikationstyp Proceedingsbeitrag
Publikationsjahr 2021
Sprache Englisch
Identifikator ISBN: 978-3-95450-214-1
KITopen-ID: 1000138580
HGF-Programm 54.11.11 (POF IV, LK 01) Accelerator Operation, Research and Development
Erschienen in 12th International Particle Accelerator Conference : virtual edition, May 24th-28th, 2021, Brazil : proceedings volume / IPAC2021. Ed.: R. Picoreti
Veranstaltung 12th International Particle Accelerator Conference (IPAC 2021), Online, 24.05.2021 – 28.05.2021
Verlag JACoW Publishing
Seiten 888-891
