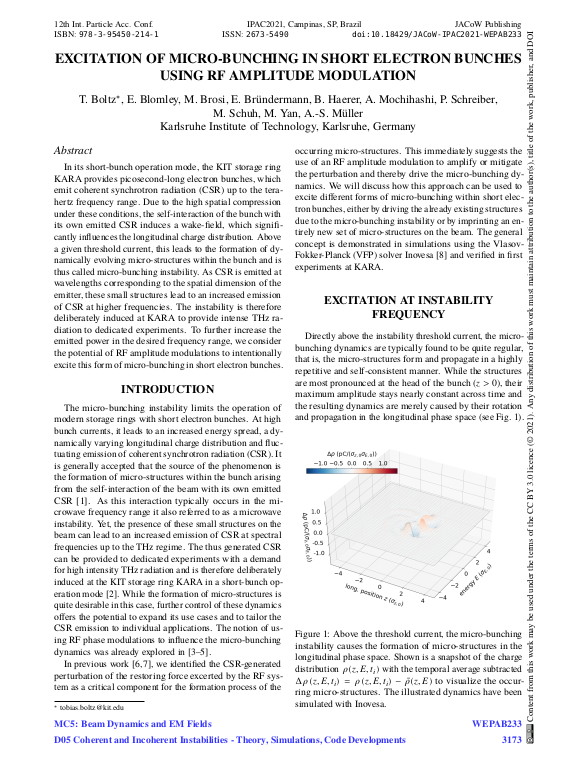

Excitation of Micro-Bunching in Short Electron Bunches Using RF Amplitude Modulation

Boltz, Tobias; Blomley, Edmund ORCID iD icon; Brosi, Miriam; Bründermann, Erik ORCID iD icon; Haerer, Bastian; Mochihashi, Akira; Müller, Anke-Susanne; Schreiber, Patrick ORCID iD icon; Schuh, Marcel; Yan, Minjie


In its short-bunch operation mode, the KIT storage ring KARA provides picosecond-long electron bunches, which emit coherent synchrotron radiation (CSR) up to the terahertz frequency range. Due to the high spatial compression under these conditions, the self-interaction of the bunch with its own emitted CSR induces a wake-field, which significantly influences the longitudinal charge distribution. Above a given threshold current, this leads to the formation of dynamically evolving micro-structures within the bunch and is thus called micro-bunching instability. As CSR is emitted at wavelengths corresponding to the spatial dimension of the emitter, these small structures lead to an increased emission of CSR at higher frequencies. The instability is therefore deliberately induced at KARA to provide intense THz radiation to dedicated experiments. To further increase the emitted power in the desired frequency range, we consider the potential of RF amplitude modulations to intentionally excite this form of micro-bunching in short electron bunches.

Verlagsausgabe §
DOI: 10.5445/IR/1000138631
Veröffentlicht am 17.02.2022
DOI: 10.18429/JACoW-IPAC2021-WEPAB233
Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Beschleunigerphysik und Technologie (IBPT)
Laboratorium für Applikationen der Synchrotronstrahlung (LAS)
Publikationstyp Proceedingsbeitrag
Publikationsjahr 2021
Sprache Englisch
Identifikator ISBN: 978-3-95450-214-1
KITopen-ID: 1000138631
HGF-Programm 54.11.11 (POF IV, LK 01) Accelerator Operation, Research and Development
Erschienen in 12th International Particle Accelerator Conference : virtual edition, May 24th-28th, 2021, Brazil : proceedings volume / IPAC2021. Ed.: R. Picoreti
Veranstaltung 12th International Particle Accelerator Conference (IPAC 2021), Online, 24.05.2021 – 28.05.2021
Verlag JACoW Publishing
Seiten 3173-3176
