Modern Ultra-Fast Detectors for Online Beam Diagnostics

Patil, Meghana Mahaveer ORCID iD icon; Bründermann, Erik ORCID iD icon; Caselle, Michele; Ebersoldt, Andreas; Funkner, Stefan; Kehrer, Benjamin; Müller, Anke-Susanne ORCID iD icon; Nasse, Michael Johannes; Niehues, Gudrun; Steinmann, Johannes Leonhard; Wang, Weijia; Weber, Marc; Widmann, Christina

Abstract:

Synchrotron light sources operate with bunch repetition rates in the MHz regime. The longitudinal and transverse beam dynamics of these electron bunches can be investigated and characterized by experiments employing linear array detectors. To improve the performance of modern beam diagnostics and overcome the limitations of commercially available detectors, we have at KIT developed KALYPSO, a detector system operating with an unprecedented frame rate of up to 12 MHz. To facilitate the integration in different experiments, a modular architecture has been utilized. Different semiconductor microstrip sensors based on Si, InGaAs, PbS, and PbSe can be connected to the custom-designed low noise front-end ASIC to optimize the quantum efficiency at different photon energies, ranging from near-UV, visible, and up to near-IR. The front-end electronics are integrated within a heterogeneous DAQ consisting of FPGAs and GPUs, which allows the implementation of real-time data processing. This detector is currently installed at KARA, European XFEL, FLASH, Soleil, DELTA. In this contribution, we present the detector architecture, the performance results, and the ongoing technical developments.


Verlagsausgabe §
DOI: 10.5445/IR/1000138649
Veröffentlicht am 05.10.2021
Originalveröffentlichung
DOI: 10.18429/JACoW-IPAC2021-FRXC03

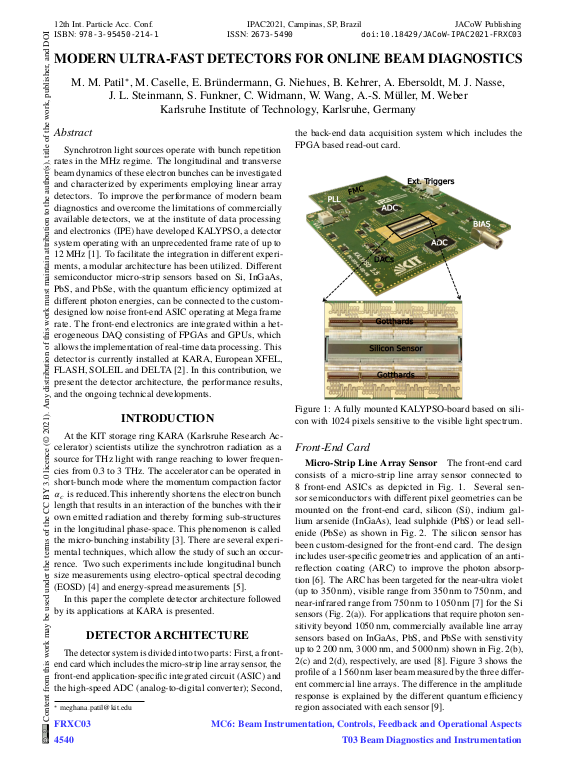

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Beschleunigerphysik und Technologie (IBPT)
Institut für Prozessdatenverarbeitung und Elektronik (IPE)
Laboratorium für Applikationen der Synchrotronstrahlung (LAS)
Publikationstyp Proceedingsbeitrag
Publikationsjahr 2021
Sprache Englisch
Identifikator ISBN: 978-3-95450-214-1
KITopen-ID: 1000138649
HGF-Programm 54.11.11 (POF IV, LK 01) Accelerator Operation, Research and Development
Erschienen in 12th International Particle Accelerator Conference : virtual edition, May 24th-28th, 2021, Brazil : proceedings volume / IPAC2021. Ed.: R. Picoreti
Veranstaltung 12th International Particle Accelerator Conference (IPAC 2021), Online, 24.05.2021 – 28.05.2021
Verlag JACoW Publishing
Seiten 4540-4544
