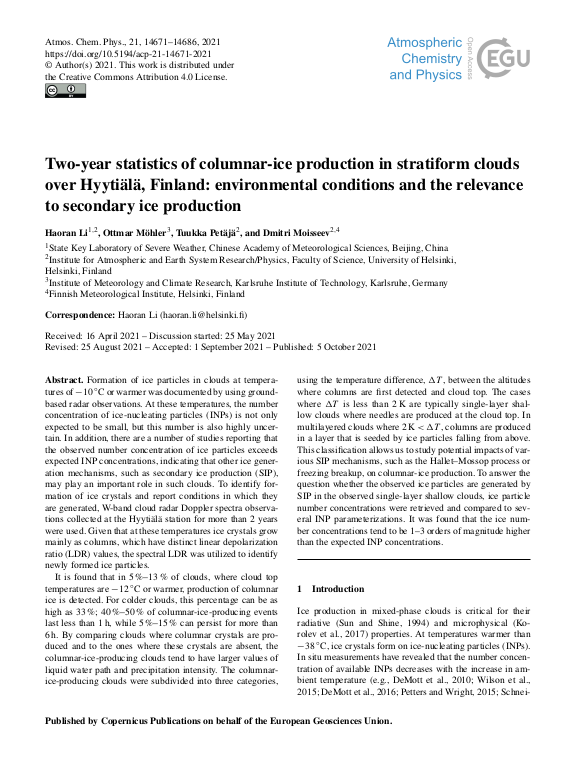

Two-year statistics of columnar-ice production in stratiform clouds over Hyytiälä, Finland: Environmental conditions and the relevance to secondary ice production

Formation of ice particles in clouds at temperatures of −10 ∘C or warmer was documented by using ground-based radar observations. At these temperatures, the number concentration of ice-nucleating particles (INPs) is not only expected to be small, but this number is also highly uncertain. In addition, there are a number of studies reporting that the observed number concentration of ice particles exceeds expected INP concentrations, indicating that other ice generation mechanisms, such as secondary ice production (SIP), may play an important role in such clouds. To identify formation of ice crystals and report conditions in which they are generated, W-band cloud radar Doppler spectra observations collected at the Hyytiälä station for more than 2 years were used. Given that at these temperatures ice crystals grow mainly as columns, which have distinct linear depolarization ratio (LDR) values, the spectral LDR was utilized to identify newly formed ice particles.

It is found that in 5 %–13 % of clouds, where cloud top temperatures are −12 ∘C or warmer, production of columnar ice is detected. For colder clouds, this percentage can be as high as 33 %; 40 %–50 % of columnar-ice-producing events last less than 1 h, while 5 %–15 % can persist for more than 6 h. ... mehrBy comparing clouds where columnar crystals are produced and to the ones where these crystals are absent, the columnar-ice-producing clouds tend to have larger values of liquid water path and precipitation intensity. The columnar-ice-producing clouds were subdivided into three categories, using the temperature difference, ΔT, between the altitudes where columns are first detected and cloud top. The cases where ΔT is less than 2 K are typically single-layer shallow clouds where needles are produced at the cloud top. In multilayered clouds where 2 K < ΔT, columns are produced in a layer that is seeded by ice particles falling from above. This classification allows us to study potential impacts of various SIP mechanisms, such as the Hallet–Mossop process or freezing breakup, on columnar-ice production. To answer the question whether the observed ice particles are generated by SIP in the observed single-layer shallow clouds, ice particle number concentrations were retrieved and compared to several INP parameterizations. It was found that the ice number concentrations tend to be 1–3 orders of magnitude higher than the expected INP concentrations.
