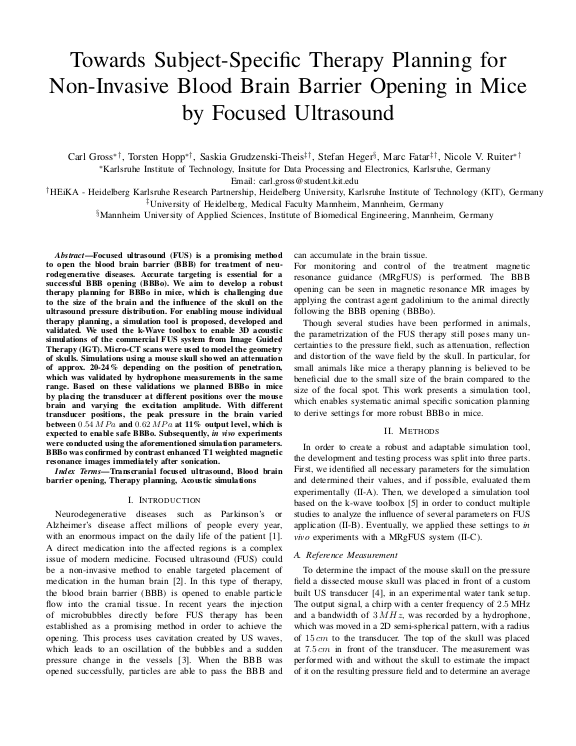

Towards Subject-Specific Therapy Planning for Non-Invasive Blood Brain Barrier Opening in Mice by Focused Ultrasound

Focused ultrasound (FUS) is a promising method to open the blood brain barrier (BBB) for treatment of neurodegenerative diseases. Accurate targeting is essential for a successful BBB opening (BBBo). We aim to develop a robust therapy planning for BBBo in mice, which is challenging due to the size of the brain and the influence of the skull on the ultrasound pressure distribution. For enabling mouse individual therapy planning, a simulation tool is proposed, developed and validated. We used the k-Wave toolbox to enable 3D acoustic simulations of the commercial FUS system from Image Guided Therapy (IGT). ... mehrMicro-CT scans were used to model the geometry of skulls. Simulations using a mouse skull showed an attenuation of approx. 20–24% depending on the position of penetration, which was validated by hydrophone measurements in the same range. Based on these validations we planned BBBo in m ice by placing the transducer at different positions over the mouse brain and varying the excitation amplitude. With different transducer positions, the peak pressure in the brain varied between 0.54 MPa and 0.62 MPa at 11% output level, which is expected to enable safe BBBo. Subsequently, in vivo experiments were conducted using the aforementioned simulation parameters. BBBo was confirmed by contrast enhanced T1 weighted magnetic resonance images immediately after sonication.

Focused ultrasound (FUS) is a promising method to open the blood brain barrier (BBB) for treatment of neurodegenerative diseases. Accurate targeting is essential for a successful BBB opening (BBBo). We aim to develop a robust therapy planning for BBBo in mice, which is challenging due to the size of the brain and the influence of the skull on the ultrasound pressure distribution. For enabling mouse individual therapy planning, a simulation tool is proposed, developed and validated. We used the k-Wave toolbox to enable 3D acoustic simulations of the commercial FUS system from Image Guided Therapy (IGT). ... mehrMicro-CT scans were used to model the geometry of skulls. Simulations using a mouse skull showed an attenuation of approx. 20-24% depending on the position of penetration, which was validated by hydrophone measurements in the same range. Based on these validations we planned BBBo in mice by placing the transducer at different positions over the mouse brain and varying the excitation amplitude. With different transducer positions, the peak pressure in the brain varied between 0.54 MPa and 0.62 MPa at 11% output level, which is expected to enable safe BBBo. Subsequently, in vivo experiments were conducted using the aforementioned simulation parameters. BBBo was confirmed by contrast enhanced T1 weighted magnetic resonance images immediately after sonication.
