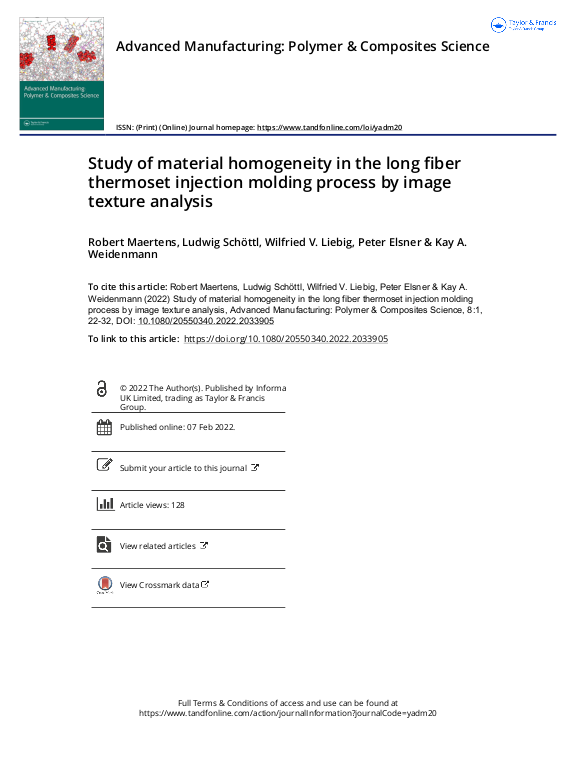

Study of material homogeneity in the long fiber thermoset injection molding process by image texture analysis

To quantify the homogeneity of fiber dispersion in short fiber-reinforced polymer composites, a method for image texture analysis of 3-dimensional X-ray micro computed tomography (µCT) images is presented in this work. The adaption of the method to the specific requirements of the composite material is accomplished using a statistical region merging approach. Subsequently, the method is applied for evaluating the homogeneity of specimens from an intermediate step of the long fiber thermoset injection molding process as well as molded parts. This new injection molding process enables the manufacturing of parts with a flexible combination of short and long glass fibers. By using a newly developed screw element based on the Maddock mixing element design, the material homogeneity of parts molded in the long fiber injection molding process is improved.
