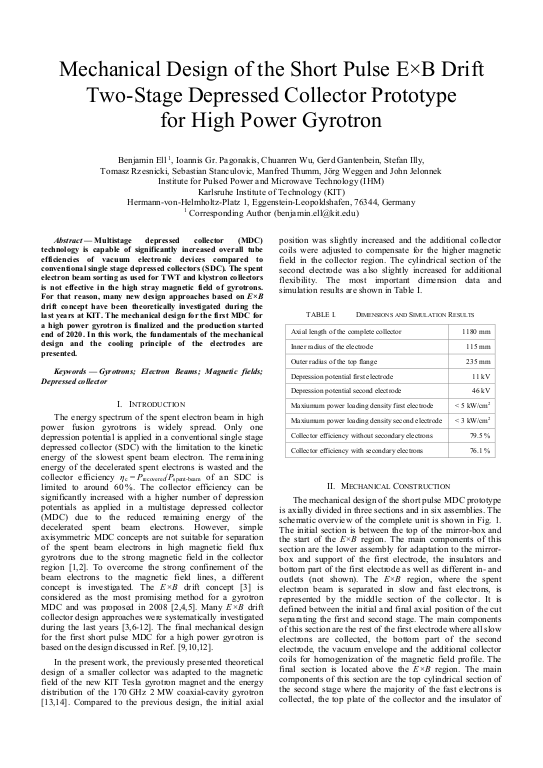

Mechanical Design of the Short Pulse E×B Drift Two-Stage Depressed Collector Prototype for High Power Gyrotron

Multistage depressed collector (MDC) technology is capable of significantly increased overall tube efficiencies of vacuum electronic devices compared to conventional single stage depressed collectors (SDC). The spent electron beam sorting as used for TWT and klystron collectors is not effective in the high stray magnetic field of gyrotrons. For that reason, many new design approaches based on E×B drift concept have been theoretically investigated during the last years at KIT. The mechanical design for the first MDC for a high power gyrotron is finalized and the production started end of 2020. In this work, the fundamentals of the mechanical design and the cooling principle of the electrodes are presented.
