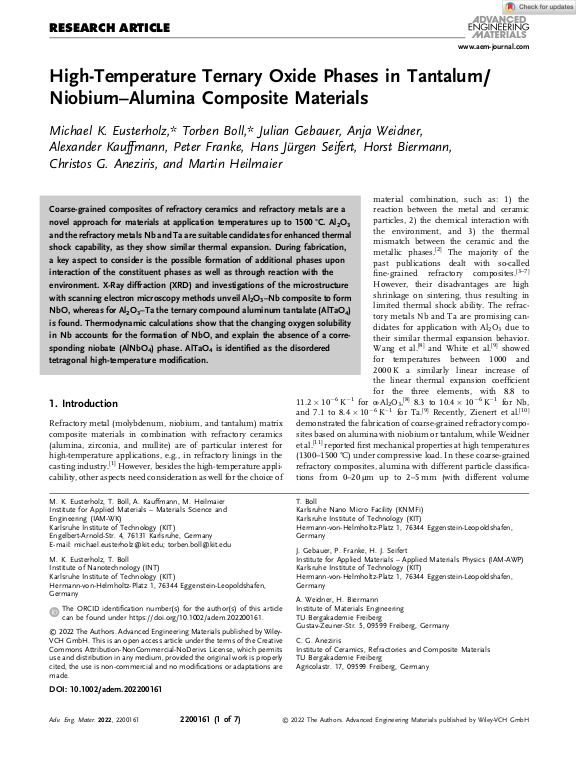

High‐temperature ternary oxide phases in Ta/Nb‐Alumina composite materials

Coarse-grained composites of refractory ceramics and refractory metals are a novel approach for materials at application temperatures up to 1500 °C. Al$_{2}$O$_{3}$ and the refractory metals Nb and Ta are suitable candidates for enhanced thermal shock capability, as they show similar thermal expansion. During fabrication, a key aspect to consider is the possible formation of additional phases upon interaction of the constituent phases as well as through reaction with the environment. X-Ray diffraction (XRD) and investigations of the microstructure with scanning electron microscopy methods unveil Al$_{2}$O$_{3}$–Nb composite to form NbO, whereas for Al$_{2}$O$_{3}$–Ta the ternary compound aluminum tantalate (AlTaO$_{4}$) is found. Thermodynamic calculations show that the changing oxygen solubility in Nb accounts for the formation of NbO, and explain the absence of a corresponding niobate (AlNbO4) phase. AlTaO$_{4}$ is identified as the disordered tetragonal high-temperature modification.
