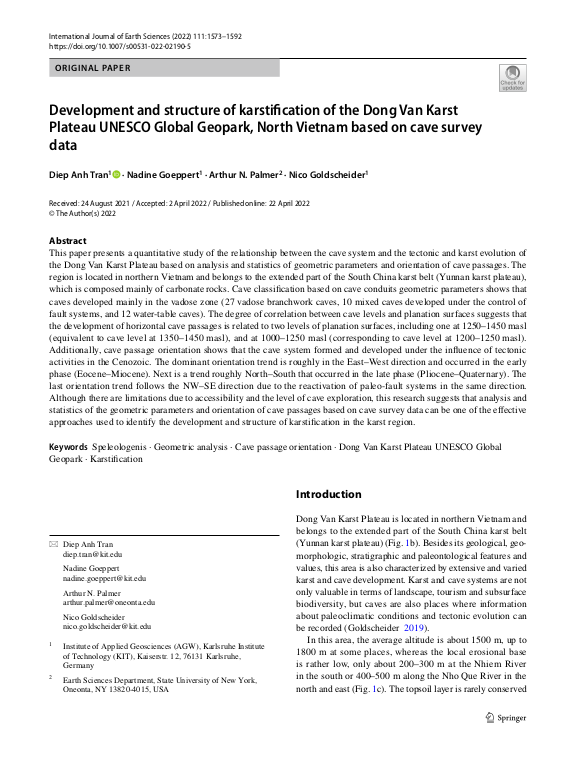

Development and structure of karstification of the Dong Van Karst Plateau UNESCO Global Geopark, North Vietnam based on cave survey data

This paper presents a quantitative study of the relationship between the cave system and the tectonic and karst evolution of the Dong Van Karst Plateau based on analysis and statistics of geometric parameters and orientation of cave passages. The region is located in northern Vietnam and belongs to the extended part of the South China karst belt (Yunnan karst plateau), which is composed mainly of carbonate rocks. Cave classification based on cave conduits geometric parameters shows that caves developed mainly in the vadose zone (27 vadose branchwork caves, 10 mixed caves developed under the control of fault systems, and 12 water-table caves). The degree of correlation between cave levels and planation surfaces suggests that the development of horizontal cave passages is related to two levels of planation surfaces, including one at 1250–1450 masl (equivalent to cave level at 1350–1450 masl), and at 1000–1250 masl (corresponding to cave level at 1200–1250 masl). Additionally, cave passage orientation shows that the cave system formed and developed under the influence of tectonic activities in the Cenozoic. The dominant orientation trend is roughly in the East–West direction and occurred in the early phase (Eocene–Miocene). ... mehrNext is a trend roughly North–South that occurred in the late phase (Pliocene–Quaternary). The last orientation trend follows the NW–SE direction due to the reactivation of paleo-fault systems in the same direction. Although there are limitations due to accessibility and the level of cave exploration, this research suggests that analysis and statistics of the geometric parameters and orientation of cave passages based on cave survey data can be one of the effective approaches used to identify the development and structure of karstification in the karst region.
