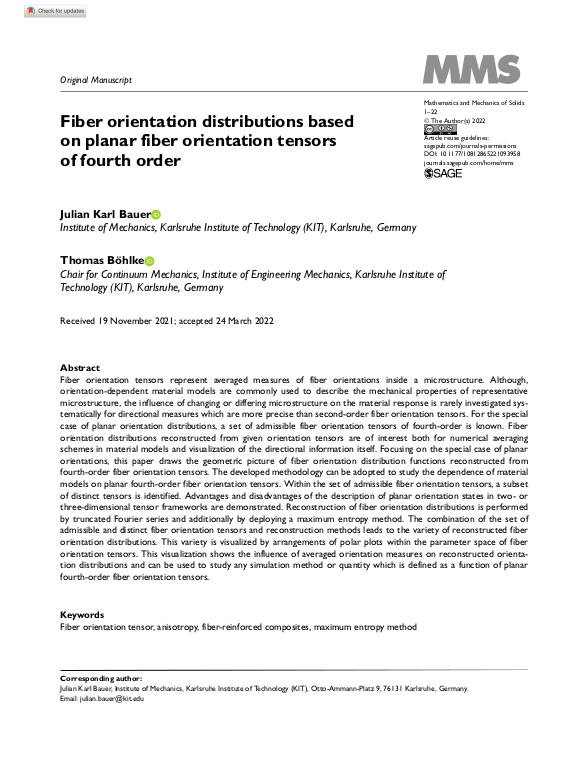

Fiber orientation distributions based on planar fiber orientation tensors of fourth order

Fiber orientation tensors represent averaged measures of fiber orientations inside a microstructure. Although, orientation-dependent material models are commonly used to describe the mechanical properties of representative microstructure, the influence of changing or differing microstructure on the material response is rarely investigated systematically for directional measures which are more precise than second-order fiber orientation tensors. For the special case of planar orientation distributions, a set of admissible fiber orientation tensors of fourth-order is known. Fiber orientation distributions reconstructed from given orientation tensors are of interest both for numerical averaging schemes in material models and visualization of the directional information itself. Focusing on the special case of planar orientations, this paper draws the geometric picture of fiber orientation distribution functions reconstructed from fourth-order fiber orientation tensors. The developed methodology can be adopted to study the dependence of material models on planar fourth-order fiber orientation tensors. Within the set of admissible fiber orientation tensors, a subset of distinct tensors is identified. ... mehrAdvantages and disadvantages of the description of planar orientation states in two- or three-dimensional tensor frameworks are demonstrated. Reconstruction of fiber orientation distributions is performed by truncated Fourier series and additionally by deploying a maximum entropy method. The combination of the set of admissible and distinct fiber orientation tensors and reconstruction methods leads to the variety of reconstructed fiber orientation distributions. This variety is visualized by arrangements of polar plots within the parameter space of fiber orientation tensors. This visualization shows the influence of averaged orientation measures on reconstructed orientation distributions and can be used to study any simulation method or quantity which is defined as a function of planar fourth-order fiber orientation tensors.
