Development of a CUSP-Type Electron Gun for a W-Band Helical Gyro-TWT

Vöhringer, Max 1,2; Marek, Alexander ORCID iD icon 2; Illy, Stefan 2; Gantenbein, Gerd 2; Thumm, Manfred 1,2; Wu, Chuanren ORCID iD icon 2; Jelonnek, John 1,2
1 Institut für Hochfrequenztechnik und Elektronik (IHE), Karlsruher Institut für Technologie (KIT)
2 Institut für Hochleistungsimpuls- und Mikrowellentechnik (IHM), Karlsruher Institut für Technologie (KIT)

Abstract (englisch):

To drive a broadband gyro-TWT with a helically corrugated interaction region, a high-quality axis-encircling electron beam is required. In this publication, a CUSP-type electron gun, capable of generating such a beam, is developed for a 94 GHz helical gyro-TWT. The design was optimized using the electron-beam-optics code ESRAY [1]. The final electron gun is optimized for the generation of an electron beam with a 50 kV beam voltage, 1.5 A current, and a pitch factor of α=1.0 with an RMS spread as low as 3.49 %. Additionally, tolerance studies, including the influence of deviations in the emitter position and the surface roughness of the emitter, are performed.

Zugehörige Institution(en) am KIT Institut für Hochfrequenztechnik und Elektronik (IHE)
Institut für Hochleistungsimpuls- und Mikrowellentechnik (IHM)
Publikationstyp Proceedingsbeitrag
Publikationsdatum 26.09.2022
Sprache Englisch
Identifikator ISBN: 978-1-72819-427-1
KITopen-ID: 1000151720
HGF-Programm 31.13.02 (POF IV, LK 01) Plasma Heating & Current Drive Systems
Erschienen in 2022 47th International Conference on Infrared, Millimeter and Terahertz Waves (IRMMW-THz)
Veranstaltung 47th International Conference on Infrared, Millimeter and Terahertz Waves (IRMMW-THz 2022), Delft, Niederlande, 28.08.2022 – 02.09.2022
Verlag Institute of Electrical and Electronics Engineers (IEEE)
Seiten 1–2
Nachgewiesen in Scopus
OpenAlex
Dimensions
Relationen in KITopen
Globale Ziele für nachhaltige Entwicklung Ziel 7 – Bezahlbare und saubere Energie

Postprint §
DOI: 10.5445/IR/1000151720
Veröffentlicht am 21.11.2022
Originalveröffentlichung
DOI: 10.1109/IRMMW-THz50927.2022.9895903
Scopus
Zitationen: 2
Dimensions
Zitationen: 2
Seitenaufrufe: 70
seit 12.11.2022
Downloads: 87
seit 22.11.2022

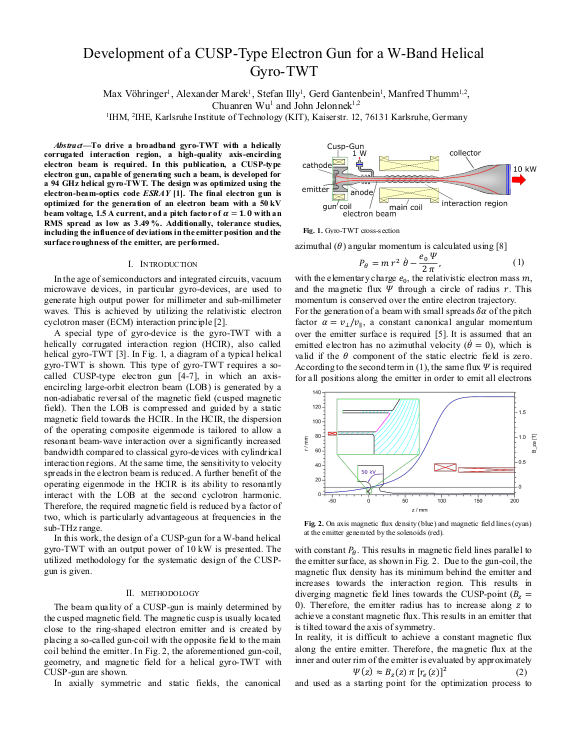

Cover der Publikation
