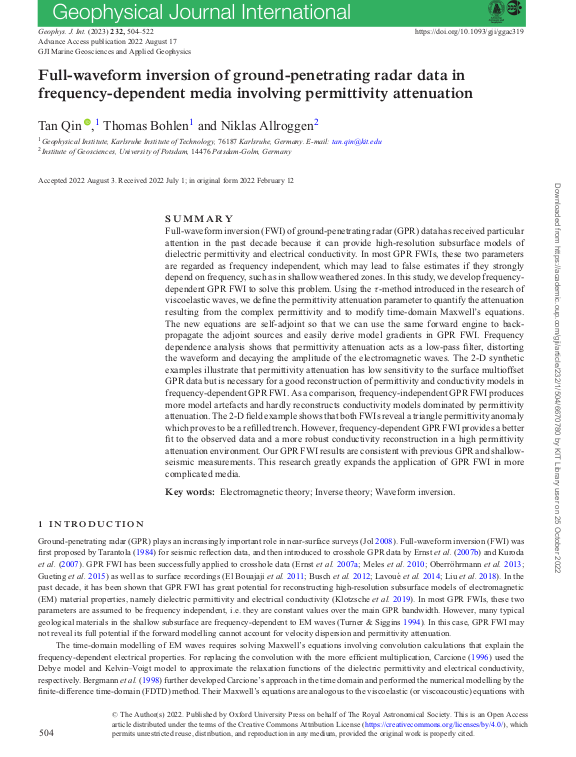

Full-waveform inversion of ground-penetrating radar data in frequency-dependent media involving permittivity attenuation

Full-waveform inversion (FWI) of ground-penetrating radar (GPR) data has received particular attention in the past decade because it can provide high-resolution subsurface models of dielectric permittivity and electrical conductivity. In most GPR FWIs, these two parameters are regarded as frequency independent, which may lead to false estimates if they strongly depend on frequency, such as in shallow weathered zones. In this study, we develop frequency-dependent GPR FWI to solve this problem. Using the τ-method introduced in the research of viscoelastic waves, we define the permittivity attenuation parameter to quantify the attenuation resulting from the complex permittivity and to modify time-domain Maxwell’s equations. The new equations are self-adjoint so that we can use the same forward engine to back-propagate the adjoint sources and easily derive model gradients in GPR FWI. Frequency dependence analysis shows that permittivity attenuation acts as a low-pass filter, distorting the waveform and decaying the amplitude of the electromagnetic waves. The 2-D synthetic examples illustrate that permittivity attenuation has low sensitivity to the surface multioffset GPR data but is necessary for a good reconstruction of permittivity and conductivity models in frequency-dependent GPR FWI. ... mehrAs a comparison, frequency-independent GPR FWI produces more model artefacts and hardly reconstructs conductivity models dominated by permittivity attenuation. The 2-D field example shows that both FWIs reveal a triangle permittivity anomaly which proves to be a refilled trench. However, frequency-dependent GPR FWI provides a better fit to the observed data and a more robust conductivity reconstruction in a high permittivity attenuation environment. Our GPR FWI results are consistent with previous GPR and shallow-seismic measurements. This research greatly expands the application of GPR FWI in more complicated media.
