Determination of Electromagnetic Material Properties of Ferromagnetic Stainless Steel Used in Domestic Induction Heating Cookware

Rehm, Felix 1; Breining, Patrick 1; Hiller, Marc 1
1 Elektrotechnisches Institut (ETI), Karlsruher Institut für Technologie (KIT)

Abstract (englisch):

Design-oriented modeling approaches, such as finite element analyses (FEA), rely on accurate material data for the modeled hardware. In the case of cookware used in domestic induction heating (IH) systems, manufacturers rarely provide the necessary data. Therefore, this contribution presents results for the electromagnetic material properties of ferromagnetic stainless steel, typically used in cookware for domestic IH. The magnetic material properties are modeled using Jiles-Atherton hysteresis model. With the used measurement method, less effort in preparation of suited material specimen is needed compared to conventional measurement methods. The presented results for the magnetic material properties are validated using Epstein frame measurements. It is shown that the hysteresis curves are similar to each other for both measurement methods. Regarding the specific electrical resistance, the results are validated using a microhmmeter. The values determined for the specific resistance show good accordance for the different measurement methods.

Postprint §
DOI: 10.5445/IR/1000152027
Veröffentlicht am 28.10.2022
DOI: 10.1109/ICEM51905.2022.9910889
Zitationen: 1
Zitationen: 1

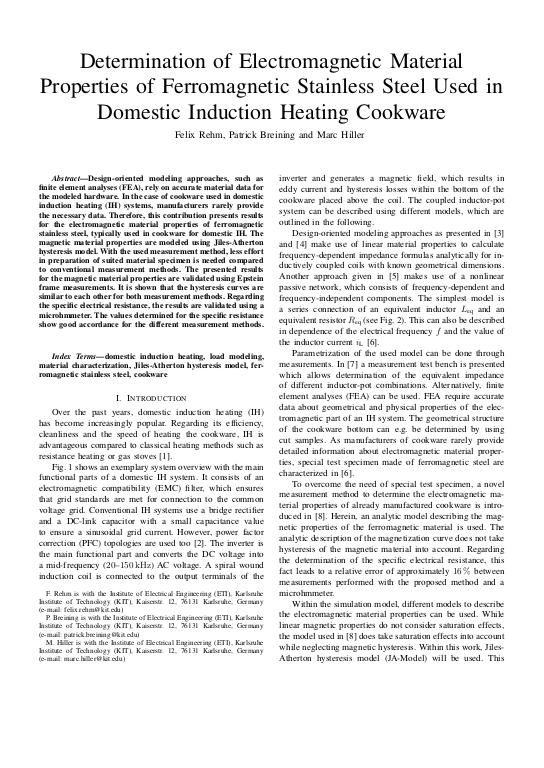

Cover der Publikation
Zugehörige Institution(en) am KIT Elektrotechnisches Institut (ETI)
Publikationstyp Proceedingsbeitrag
Publikationsdatum 05.09.2022
Sprache Englisch
Identifikator ISBN: 978-1-66541-432-6
KITopen-ID: 1000152027
Erschienen in 2022 International Conference on Electrical Machines (ICEM)
Verlag Institute of Electrical and Electronics Engineers (IEEE)
Seiten 1009–1014
