Modelling of a Resonant Charging Circuit for a Solid-State Marx Generator

Sack, Martin 1; Ruf, Johannes 2; Herzog, Dennis 1; Müller, Georg 1
1 Institut für Hochleistungsimpuls- und Mikrowellentechnik (IHM), Karlsruher Institut für Technologie (KIT)
2 Karlsruher Institut für Technologie (KIT)

Abstract (englisch):

For the pulsed electric field treatment of plant material on an industrial scale, Marx-type pulse modulators are used as a pulse source. The combination of a conventional Marx generator design equipped with solid-state switches with the concept of resonant charging via current-compensated chokes enables the set-up of a Marx generator having only one active semiconductor switch per stage. Thereby, the pulse shape is defined by the passive components of the RLC-pulse circuit. In the course of the design of such a resonant charging circuit, common-mode current components through the current-compensated chokes need to be considered. Moreover, especially for a generator having its ground connection at its centre, induced voltages versus ground need to be addressed. Therefore, an investigation based on circuit simulations has been made. The simulations showed that the common-mode current components decay to zero just after the resonant charging process and cause a voltage transient at the terminal of the power supply, which needs to be floating versus ground. In order to reduce the amplitude of this transient, the effects of adding a damping resistor have been studied. ... mehr


Verlagsausgabe §
DOI: 10.5445/IR/1000153857
Veröffentlicht am 15.12.2022

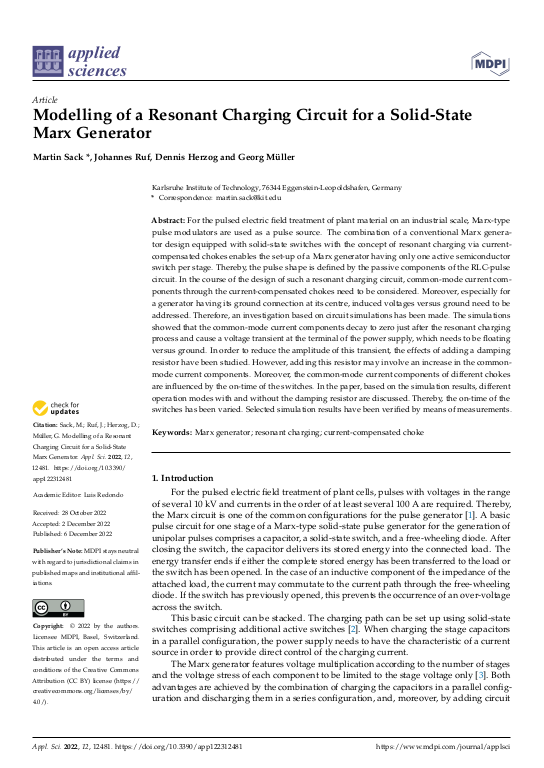

Cover der Publikation
