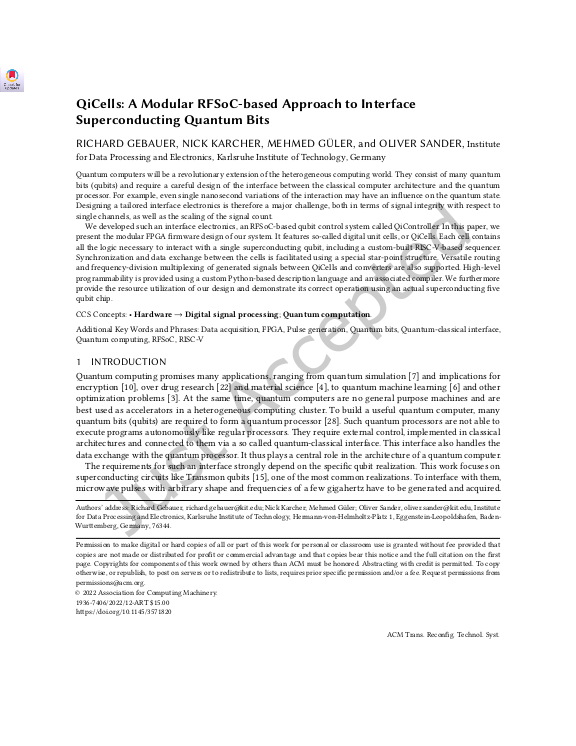

QiCells: A Modular RFSoC-based Approach to Interface Superconducting Quantum Bits

Quantum computers will be a revolutionary extension of the heterogeneous computing world. They consist of many quantum bits (qubits) and require a careful design of the interface between the classical computer architecture and the quantum processor. For example, even single nanosecond variations of the interaction may have an influence on the quantum state. Designing a tailored interface electronics is therefore a major challenge, both in terms of signal integrity with respect to single channels, as well as the scaling of the signal count.

We developed such an interface electronics, an RFSoC-based qubit control system called QiController. In this paper, we present the modular FPGA firmware design of our system. It features so-called digital unit cells, or QiCells. Each cell contains all the logic necessary to interact with a single superconducting qubit, including a custom-built RISC-V-based sequencer. Synchronization and data exchange between the cells is facilitated using a special star-point structure. Versatile routing and frequency-division multiplexing of generated signals between QiCells and converters are also supported. High-level programmability is provided using a custom Python-based description language and an associated compiler. ... mehrWe furthermore provide the resource utilization of our design and demonstrate its correct operation using an actual superconducting five qubit chip.
