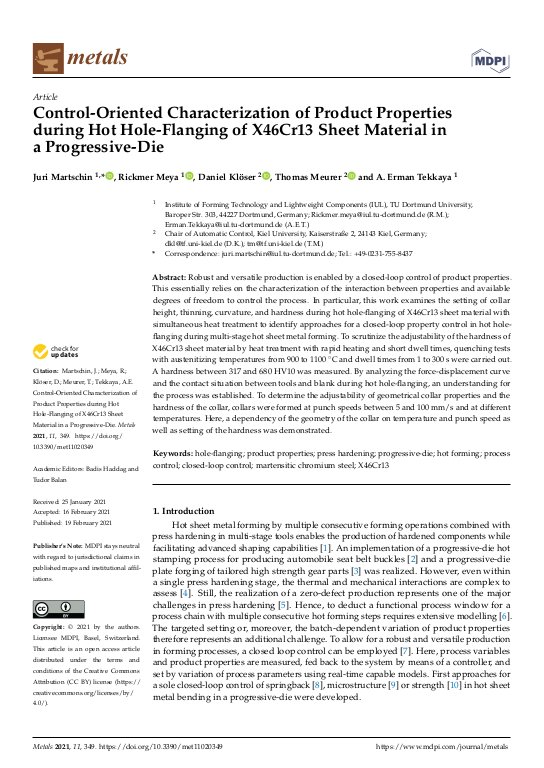

Control-Oriented Characterization of Product Properties during Hot Hole-Flanging of X46Cr13 Sheet Material in a Progressive-Die

Robust and versatile production is enabled by a closed-loop control of product properties. This essentially relies on the characterization of the interaction between properties and available degrees of freedom to control the process. In particular, this work examines the setting of collar height, thinning, curvature, and hardness during hot hole-flanging of X46Cr13 sheet material with simultaneous heat treatment to identify approaches for a closed-loop property control in hot hole-flanging during multi-stage hot sheet metal forming. To scrutinize the adjustability of the hardness of X46Cr13 sheet material by heat treatment with rapid heating and short dwell times, quenching tests with austenitizing temperatures from 900 to 1100 °C and dwell times from 1 to 300 s were carried out. A hardness between 317 and 680 HV10 was measured. By analyzing the force-displacement curve and the contact situation between tools and blank during hot hole-flanging, an understanding for the process was established. To determine the adjustability of geometrical collar properties and the hardness of the collar, collars were formed at punch speeds between 5 and 100 mm/s and at different temperatures. ... mehrHere, a dependency of the geometry of the collar on temperature and punch speed as well as setting of the hardness was demonstrated.
