Translucent perovskite photovoltaics for building integration

Ritzer, D. B. ORCID iD icon 1,2; Abdollahi Nejand, B. 1,2; Ruiz-Preciado, M. A. 1,2; Gharibzadeh, S. 1; Hu, H. ORCID iD icon 1,2; Diercks, A. 1; Feeney, T. 1; Richards, B. S. ORCID iD icon 1,2; Abzieher, T. 1; Paetzold, U. W. ORCID iD icon 1,2
1 Lichttechnisches Institut (LTI), Karlsruher Institut für Technologie (KIT)
2 Institut für Mikrostrukturtechnik (IMT), Karlsruher Institut für Technologie (KIT)

Abstract (englisch):

Transparent photovoltaics provide diverse levels of average visible transmittance (AVT) along with concurrent light harvesting, making glass façades and windows accessible for photovoltaics. However, improvements in power conversion efficiency (PCE) and aesthetics are required to enhance commercial viability and public acceptance. This work presents the scalable fabrication of efficient micro-patterned translucent perovskite photovoltaics at optical qualities suited for building integration. Optimized laser-scribed transparent areas (25 μm) mitigate detrimental effects on electrical performance, featuring perovskite solar cells with 44% AVT and demonstrating industrial glass quality through neutral color rendering (CRI 97) and only 3% haze. Highlighting scalability, submodules yield PCEs of 9.0% at 32% AVT (4 cm2 aperture area). The transfer to two-terminal perovskite–perovskite tandem solar cells exhibiting PCEs of 17.7% at 12% AVT and 11.1% at 31% AVT demonstrates the first translucent perovskite tandem photovoltaics. Lastly, the novel concept of transmittance gradients with 7% cm−1 absolute change in AVT and 12.0% PCE for submodules is presented, providing a foundation for architectural individualizations.


Verlagsausgabe §
DOI: 10.5445/IR/1000157921
Veröffentlicht am 28.04.2023
Originalveröffentlichung
DOI: 10.1039/D2EE04137E
Scopus
Zitationen: 17
Web of Science
Zitationen: 19
Dimensions
Zitationen: 27

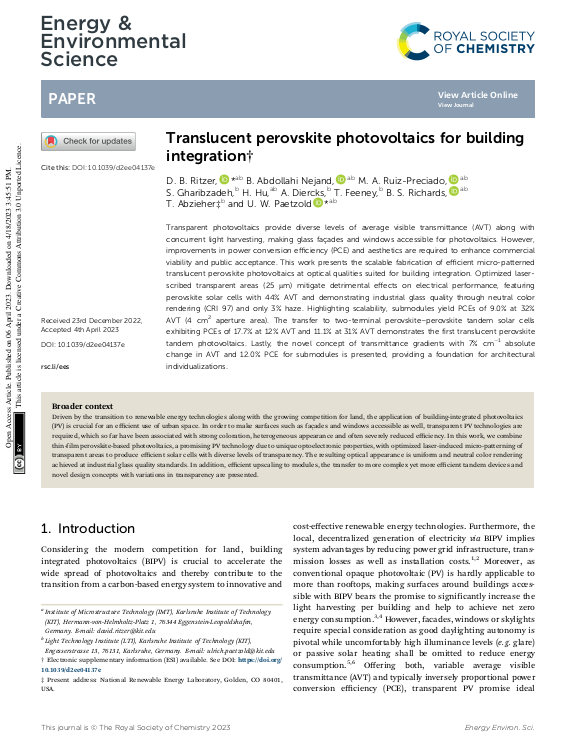

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Mikrostrukturtechnik (IMT)
Karlsruhe School of Optics & Photonics (KSOP)
Lichttechnisches Institut (LTI)
Publikationstyp Zeitschriftenaufsatz
Publikationsdatum 06.04.2023
Sprache Englisch
Identifikator ISSN: 1754-5692, 1754-5706
KITopen-ID: 1000157921
HGF-Programm 38.01.04 (POF IV, LK 01) Modules, Stability, Performance and Specific Applications
Erschienen in Energy & Environmental Science
Verlag Royal Society of Chemistry (RSC)
Band 16
Heft 5
Seiten 2212-2225
Nachgewiesen in Web of Science
Dimensions
Scopus
Globale Ziele für nachhaltige Entwicklung Ziel 7 – Bezahlbare und saubere Energie
