A Novel Plenoptic Camera-Based Measurement System for the Investigation into Flight and Combustion Behavior of Refuse-Derived Fuel Particles

Zhang, Miao ORCID iD icon 1; Vogelbacher, Markus ORCID iD icon 1; Aleksandrov, Krasimir 2; Gehrmann, Hans-Joachim 2; Stapf, Dieter 2; Streier, Robin; Wirtz, Siegmar; Scherer, Viktor; Matthes, Jörg 1
1 Institut für Automation und angewandte Informatik (IAI), Karlsruher Institut für Technologie (KIT)
2 Institut für Technische Chemie (ITC), Karlsruher Institut für Technologie (KIT)


In the past several decades, refuse-derived fuels (RDFs) have been widely applied in industrial combustion processes, for instance, in cement production. Since RDF is composed of various waste fractions with complex shapes, its flight and combustion behaviors can be relatively complicated. In this paper, we present a novel plenoptic camera-based spatial measurement system that uses image processing approaches to determine the dwell time, the space-sliced velocity in the depth direction, and the ignition time of various applied RDF fractions based on the obtained images. The image processing approach follows the concept of tracking-by-detection and includes a novel combined detection method, a 2.5D multiple particle tracking algorithm, and a postprocessing framework to tackle the issues in the initial tracking results. The thereby obtained complete spatial fuel trajectories enable the analysis of the flight behaviors elaborated in the paper. The acquired particles’ properties (duration, velocity, and ignition time) reversely prove the availability and applicability of the developed measurement system. The adequacy and accuracy of the proposed novel measurement system are validated by the experiments of detecting and tracking burning and nonburning fuel particles in a rotary kiln. ... mehr

Verlagsausgabe §
DOI: 10.5445/IR/1000158312
Veröffentlicht am 02.05.2023

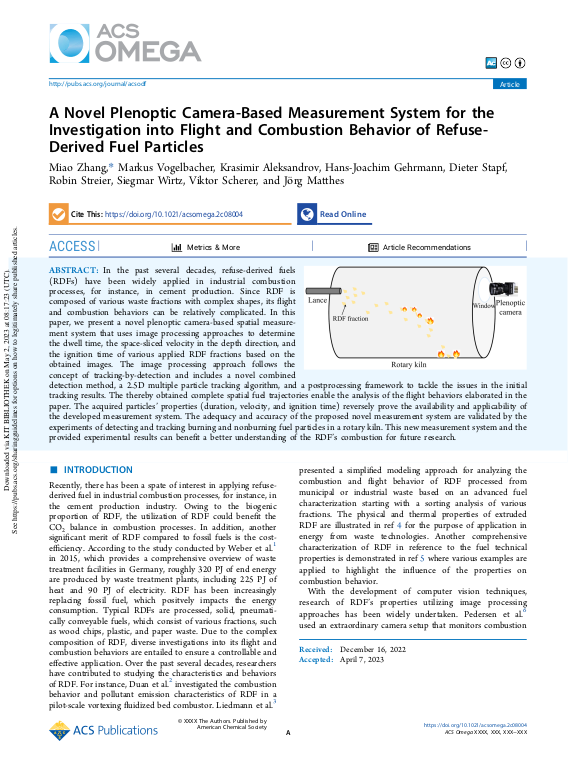

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Automation und angewandte Informatik (IAI)
Institut für Technische Chemie (ITC)
Publikationstyp Zeitschriftenaufsatz
Publikationsdatum 02.05.2023
Sprache Englisch
Identifikator ISSN: 2470-1343
KITopen-ID: 1000158312
HGF-Programm 37.12.01 (POF IV, LK 01) Digitalization & System Technology for Flexibility Solutions
Weitere HGF-Programme 38.05.01 (POF IV, LK 01) Anthropogenic Carbon Cycle
Erschienen in ACS Omega
Verlag American Chemical Society (ACS)
Band 8
Heft 19
Seiten 16700–16712
Projektinformation FLUFF (BMWK, 20410 N/3)
Bemerkung zur Veröffentlichung Gefördert durch den KIT-Publikationsfonds
Vorab online veröffentlicht am 01.05.2023
Nachgewiesen in Scopus
