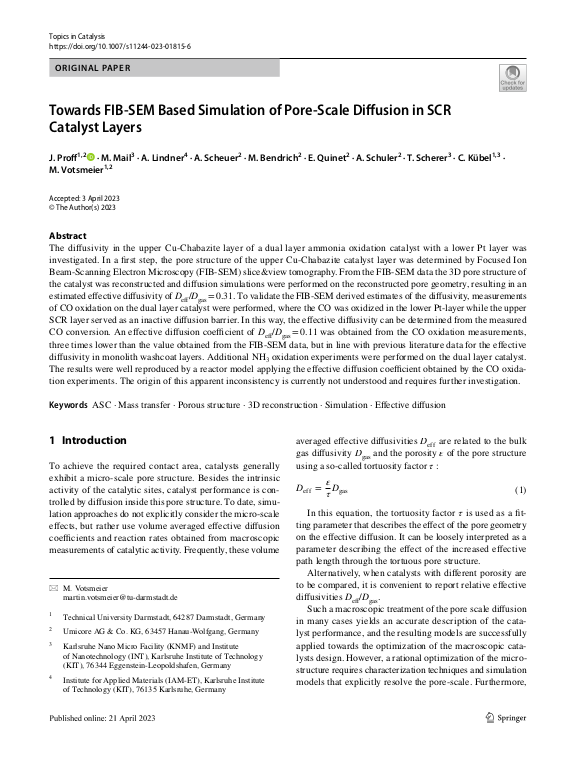

Towards FIB-SEM Based Simulation of Pore-Scale Diffusion in SCR Catalyst Layers

The diffusivity in the upper Cu-Chabazite layer of a dual layer ammonia oxidation catalyst with a lower Pt layer was investigated. In a first step, the pore structure of the upper Cu-Chabazite catalyst layer was determined by Focused Ion Beam-Scanning Electron Microscopy (FIB-SEM) slice&view tomography. From the FIB-SEM data the 3D pore structure of the catalyst was reconstructed and diffusion simulations were performed on the reconstructed pore geometry, resulting in an estimated effective diffusivity of D$_{eff}$/D$_{gas}$ = 0.31. To validate the FIB-SEM derived estimates of the diffusivity, measurements of CO oxidation on the dual layer catalyst were performed, where the CO was oxidized in the lower Pt-layer while the upper SCR layer served as an inactive diffusion barrier. In this way, the effective diffusivity can be determined from the measured CO conversion. An effective diffusion coefficient of D$_{eff}$/D$_{gas}$ = 0.11 was obtained from the CO oxidation measurements, three times lower than the value obtained from the FIB-SEM data, but in line with previous literature data for the effective diffusivity in monolith washcoat layers. ... mehrAdditional NH$_{3}$ oxidation experiments were performed on the dual layer catalyst. The results were well reproduced by a reactor model applying the effective diffusion coefficient obtained by the CO oxidation experiments. The origin of this apparent inconsistency is currently not understood and requires further investigation.
