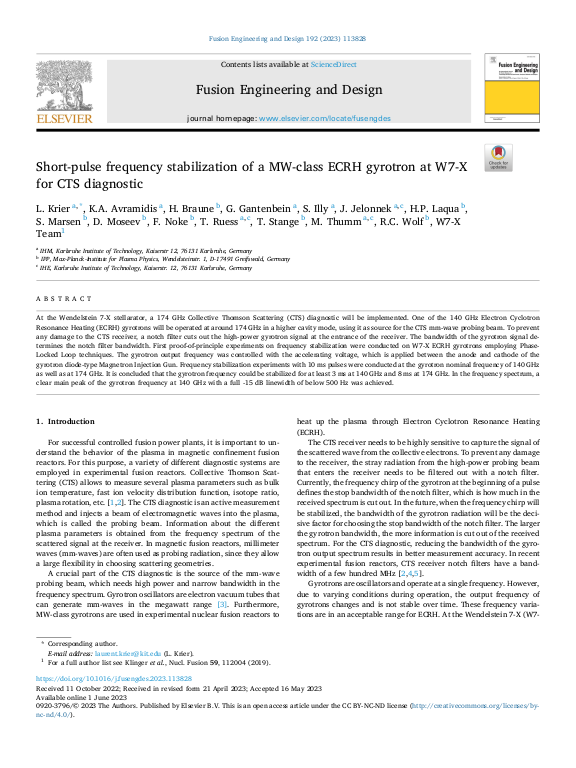

Short-pulse frequency stabilization of a MW-class ECRH gyrotron at W7-X for CTS diagnostic

At the Wendelstein 7-X stellarator, a 174 GHz Collective Thomson Scattering (CTS) diagnostic will be implemented. One of the 140 GHz Electron Cyclotron Resonance Heating (ECRH) gyrotrons will be operated at around 174 GHz in a higher cavity mode, using it as source for the CTS mm-wave probing beam. To prevent any damage to the CTS receiver, a notch filter cuts out the high-power gyrotron signal at the entrance of the receiver. The bandwidth of the gyrotron signal determines the notch filter bandwidth. First proof-of-principle experiments on frequency stabilization were conducted on W7-X ECRH gyrotrons employing Phase-Locked Loop techniques. The gyrotron output frequency was controlled with the accelerating voltage, which is applied between the anode and cathode of the gyrotron diode-type Magnetron Injection Gun. Frequency stabilization experiments with 10 ms pulses were conducted at the gyrotron nominal frequency of 140 GHz as well as at 174 GHz. It is concluded that the gyrotron frequency could be stabilized for at least 3 ms at 140 GHz and 8 ms at 174 GHz. In the frequency spectrum, a clear main peak of the gyrotron frequency at 140 GHz with a full -15 dB linewidth of below 500 Hz was achieved.
