Effect of impurities on microstructural evolution under irradiation in beryllium

Impurities are known to affect mechanical properties of beryllium, but their effect on development of irradiation induced microstructure is still unknown. In this contribution we are making further attempt to reveal behavior of impurities in neutron irradiated beryllium pebbles by using both analytical transmission electron microscope (TEM) and first principles computer simulations.
TEM studies have revealed Al-Fe-Be precipitates, complex multiple phase precipitates, homogeneous segregations of elements to grain boundaries as well as abundant precipitation along dislocations. All precipitates are richly decorated with helium bubbles which are smaller in size than typical bubbles inside grains. Precipitate-free and helium-bubble-free zones were observed along grain boundaries.

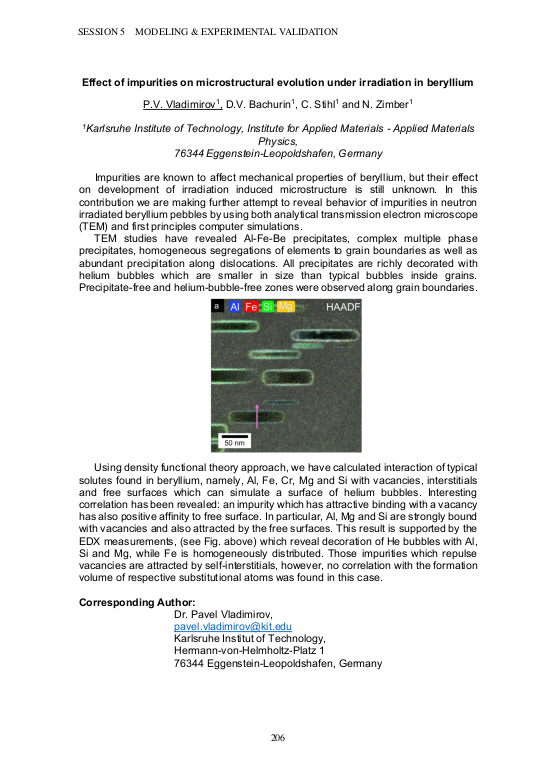

Using density functional theory approach, we have calculated interaction of typical solutes found in beryllium, namely, Al, Fe, Cr, Mg and Si with vacancies, interstitials and free surfaces which can simulate a surface of helium bubbles. Interesting correlation has been revealed: an impurity which has attractive binding with a vacancy has also positive affinity to free surface. ... mehrIn particular, Al, Mg and Si are strongly bound with vacancies and also attracted by the free surfaces. This result is supported by the EDX measurements, (see Fig. above) which reveal decoration of He bubbles with Al, Si and Mg, while Fe is homogeneously distributed. Those impurities which repulse vacancies are attracted by self-interstitials, however, no correlation with the formation volume of respective substitutional atoms was found in this case.
