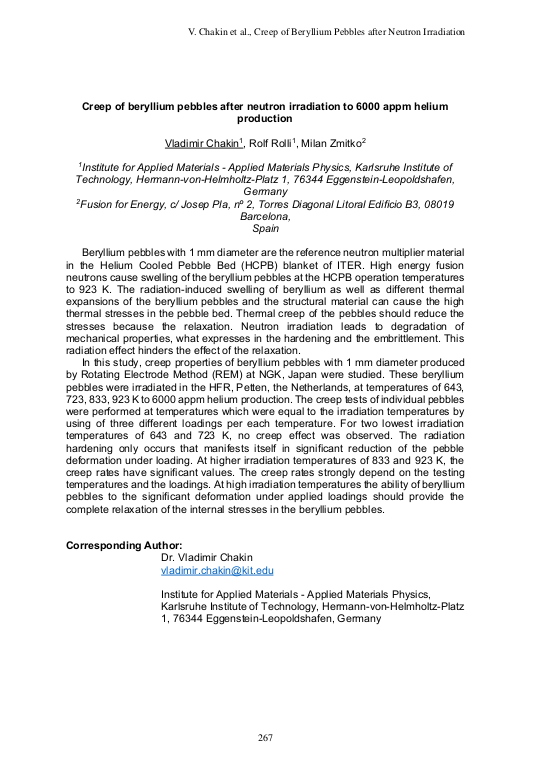

Creep of beryllium pebbles after neutron irradiation to 6000 appm helium production

Beryllium pebbles with 1 mm diameter are the reference neutron multiplier material in the Helium Cooled Pebble Bed (HCPB) blanket of ITER. High energy fusion neutrons cause swelling of the beryllium pebbles at the HCPB operation temperatures to 923 K. The radiation-induced swelling of beryllium as well as different thermal expansions of the beryllium pebbles and the structural material can cause the high thermal stresses in the pebble bed. Thermal creep of the pebbles should reduce the stresses because the relaxation. Neutron irradiation leads to degradation of mechanical properties, what expresses in the hardening and the embrittlement. This radiation effect hinders the effect of the relaxation.
In this study, creep properties of beryllium pebbles with 1 mm diameter produced by Rotating Electrode Method (REM) at NGK, Japan were studied. These beryllium pebbles were irradiated in the HFR, Petten, the Netherlands, at temperatures of 643, 723, 833, 923 K to 6000 appm helium production. The creep tests of individual pebbles were performed at temperatures which were equal to the irradiation temperatures by using of three different loadings per each temperature. ... mehrFor two lowest irradiation temperatures of 643 and 723 K, no creep effect was observed. The radiation hardening only occurs that manifests itself in significant reduction of the pebble deformation under loading. At higher irradiation temperatures of 833 and 923 K, the creep rates have significant values. The creep rates strongly depend on the testing temperatures and the loadings. At high irradiation temperatures the ability of beryllium pebbles to the significant deformation under applied loadings should provide the complete relaxation of the internal stresses in the beryllium pebbles.
