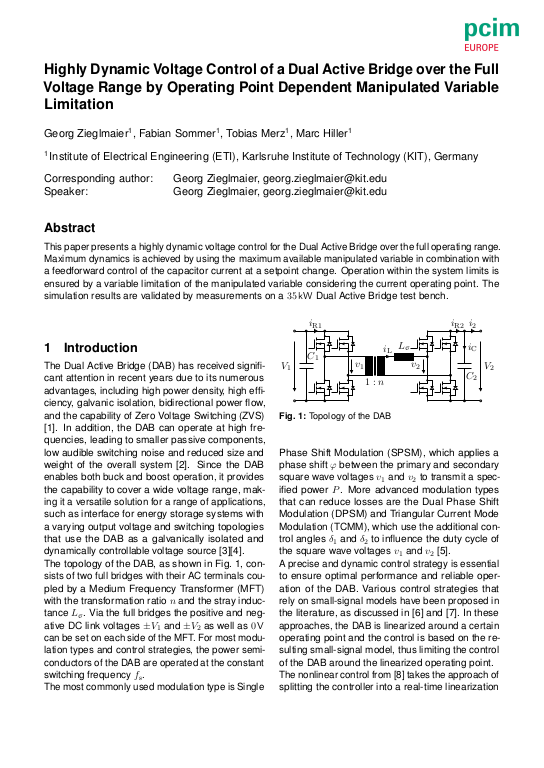

Highly Dynamic Voltage Control of a Dual Active Bridge over the Full Voltage Range by Operating Point Dependent Manipulated Variable Limitation

This paper presents a highly dynamic voltage control for the Dual Active Bridge over the full operating range. Maximum dynamics is achieved by using the maximum available manipulated variable in combination with a feedforward control of the capacitor current at a setpoint change. Operation within the system limits is ensured by a variable limitation of the manipulated variable considering the current operating point. The simulation results are validated by measurements on a 35 kW Dual Active Bridge test bench.
