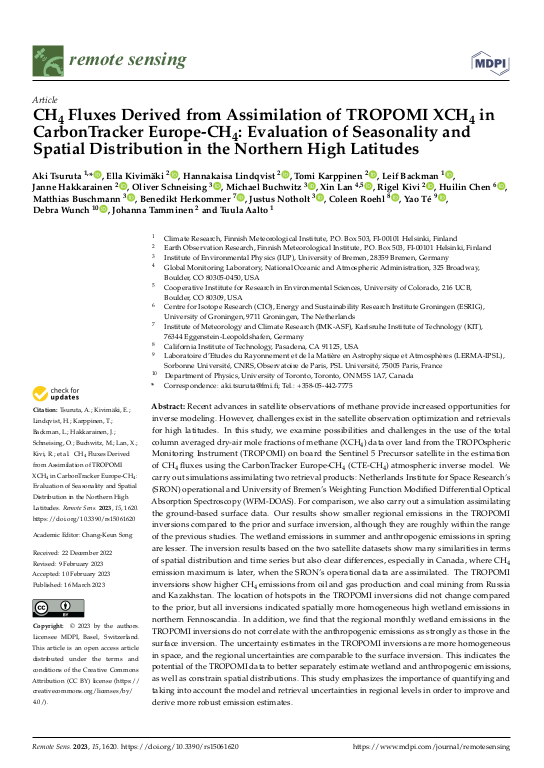

CH$_4$ Fluxes Derived from Assimilation of TROPOMI XCH$_4$ in CarbonTracker Europe-CH$_4$: Evaluation of Seasonality and Spatial Distribution in the Northern High Latitudes

Recent advances in satellite observations of methane provide increased opportunities for inverse modeling. However, challenges exist in the satellite observation optimization and retrievals for high latitudes. In this study, we examine possibilities and challenges in the use of the total column averaged dry-air mole fractions of methane (XCH$_4$) data over land from the TROPOspheric Monitoring Instrument (TROPOMI) on board the Sentinel 5 Precursor satellite in the estimation of CH4 fluxes using the CarbonTracker Europe-CH$_4$ (CTE-CH$_4$) atmospheric inverse model. We carry out simulations assimilating two retrieval products: Netherlands Institute for Space Research’s (SRON) operational and University of Bremen’s Weighting Function Modified Differential Optical Absorption Spectroscopy (WFM-DOAS). For comparison, we also carry out a simulation assimilating the ground-based surface data. Our results show smaller regional emissions in the TROPOMI inversions compared to the prior and surface inversion, although they are roughly within the range of the previous studies. The wetland emissions in summer and anthropogenic emissions in spring are lesser. ... mehrThe inversion results based on the two satellite datasets show many similarities in terms of spatial distribution and time series but also clear differences, especially in Canada, where CH$_4$ emission maximum is later, when the SRON’s operational data are assimilated. The TROPOMI inversions show higher CH$_4$ emissions from oil and gas production and coal mining from Russia and Kazakhstan. The location of hotspots in the TROPOMI inversions did not change compared to the prior, but all inversions indicated spatially more homogeneous high wetland emissions in northern Fennoscandia. In addition, we find that the regional monthly wetland emissions in the TROPOMI inversions do not correlate with the anthropogenic emissions as strongly as those in the surface inversion. The uncertainty estimates in the TROPOMI inversions are more homogeneous in space, and the regional uncertainties are comparable to the surface inversion. This indicates the potential of the TROPOMI data to better separately estimate wetland and anthropogenic emissions, as well as constrain spatial distributions. This study emphasizes the importance of quantifying and taking into account the model and retrieval uncertainties in regional levels in order to improve and derive more robust emission estimates.
