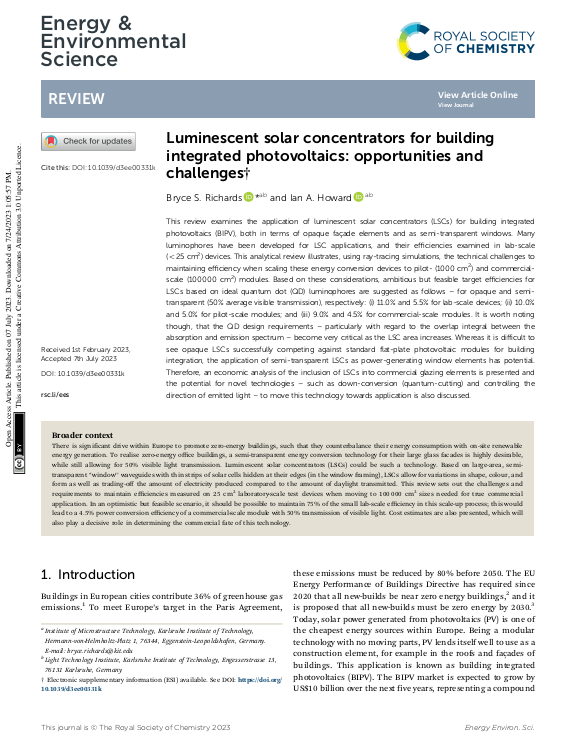

Luminescent solar concentrators for building integrated photovoltaics: opportunities and challenges

This review examines the application of luminescent solar concentrators (LSCs) for building integrated photovoltaics (BIPV), both in terms of opaque façade elements and as semi-transparent windows. Many luminophores have been developed for LSC applications, and their efficiencies examined in lab-scale (<25 cm$^2$) devices. This analytical review illustrates, using ray-tracing simulations, the technical challenges to maintaining efficiency when scaling these energy conversion devices to pilot- (1000 cm$^2$) and commercial-scale (100 000 cm$^2$) modules. Based on these considerations, ambitious but feasible target efficiencies for LSCs based on ideal quantum dot (QD) luminophores are suggested as follows – for opaque and semi-transparent (50% average visible transmission), respectively: (i) 11.0% and 5.5% for lab-scale devices; (ii) 10.0% and 5.0% for pilot-scale modules; and (iii) 9.0% and 4.5% for commercial-scale modules. It is worth noting though, that the QD design requirements – particularly with regard to the overlap integral between the absorption and emission spectrum – become very critical as the LSC area increases. Whereas it is difficult to see opaque LSCs successfully competing against standard flat-plate photovoltaic modules for building integration, the application of semi-transparent LSCs as power-generating window elements has potential. ... mehrTherefore, an economic analysis of the inclusion of LSCs into commercial glazing elements is presented and the potential for novel technologies – such as down-conversion (quantum-cutting) and controlling the direction of emitted light – to move this technology towards application is also discussed.
