Application of a nanoindentation-based approach for parameter identification to a crystal plasticity model for bcc metals

Gallardo-Basile, Francisco-José; Roters, Franz; Jentner, Robin M.; Best, James P.; Kirchlechner, Christoph 1; Srivastava, Kinshuk; Scholl, Sebastian; Diehl, Martin
1 Institut für Angewandte Materialien – Werkstoff- und Grenzflächenmechanik (IAM-MMI), Karlsruher Institut für Technologie (KIT)

Abstract:

The application of an inverse method for determining the parameters of a crystal plasticity constitutive law of a body-centered-cubic (BCC) single phase material is presented. Nanoindentation is used as the primary experimental input. An objective function, based on the deviation between the experimentally measured imprint and the simulated one, is minimized by a differential evolution algorithm to obtain the best fitting crystal plasticity parameters. To aid the identification procedure additional experimental data is used: the upper bounds and the ratios of the critical resolved shear stresses of the three slip plane families in BCC are estimated from micropillar compression experiments and used as a constraint in the optimization. The effect of the imposed constraints and the chosen strategy for mapping experimental to simulated displacements is presented and discussed. The validation of the method is done in the macroscopic regime by comparing an experimental tensile test with a simulated one using the obtained crystal plasticity parameters. Accurate results are achieved from two different indents. Therefore, the method is a promising path for determining crystal plasticity parameters in the case where a direct fitting from a macroscopic stress–strain curve is not possible, i.e. ... mehr


Verlagsausgabe §
DOI: 10.5445/IR/1000161020
Veröffentlicht am 28.07.2023
Originalveröffentlichung
DOI: 10.1016/j.msea.2023.145373
Scopus
Zitationen: 10
Web of Science
Zitationen: 6
Dimensions
Zitationen: 11

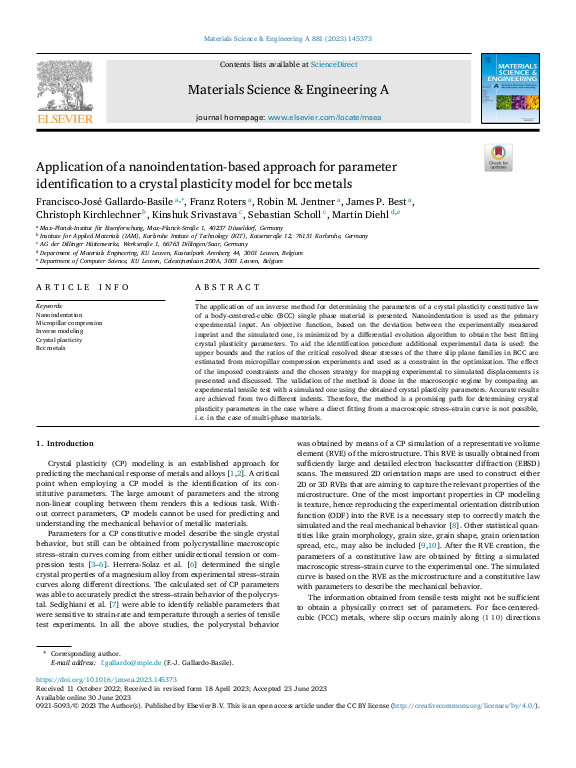

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Angewandte Materialien – Werkstoff- und Grenzflächenmechanik (IAM-MMI)
Publikationstyp Zeitschriftenaufsatz
Publikationsjahr 2023
Sprache Englisch
Identifikator ISSN: 0921-5093, 1873-4936
KITopen-ID: 1000161020
HGF-Programm 43.31.01 (POF IV, LK 01) Multifunctionality Molecular Design & Material Architecture
Erschienen in Materials Science and Engineering: A
Verlag Elsevier
Band 881
Seiten Art.-Nr.: 145373
Vorab online veröffentlicht am 30.06.2023
Schlagwörter Nanoindentation, Micropillar compression, Inverse modeling, Crystal plasticity, Bcc metals
