Magnetic bearings with double crossed loops modelled with T-A formulation and electric circuits

Santos, Bárbara Maria Oliveira; dos Santos, Gabriel; Martins, Flávio Goulart dos Reis; Sass, Felipe; Sotelo, Guilherme Gonçalves; de Andrade Junior, Rubens; Grilli, Francesco 1
1 Institut für Technische Physik (ITEP), Karlsruher Institut für Technologie (KIT)

Abstract:

The application of High-Temperature Superconductor (HTS) coils made of coated conductors has been investigated for many years. A possible configuration for such coils is the jointless loop, also known as the ring coil. The double crossed loop coil (DCLC) has been successfully applied in superconducting magnetic bearings (SMBs). The design of SMBs with DCLCs requires flexible modelling to allow all parts of the device to be represented. This work proposes the T-A formulation with a thin-film approximation for modelling SMB with DCLCs in the finite element analysis framework. A 2D representation of the system is coupled with an external electric circuit to model the continuity of the lines that represent the parts of each jointless loop. To couple the T-A formulation and the circuit, an average of the total electric field, with both resistive and inductive components, is applied to the circuit. The total current computed by the circuit is applied to the T-A formulation. The proposed methodology was validated by comparison with levitation force experimental data. Two types of tests were simulated: five levitation force tests and three guidance force tests. ... mehr


Verlagsausgabe §
DOI: 10.5445/IR/1000161964
Veröffentlicht am 14.09.2023
Originalveröffentlichung
DOI: 10.1016/j.supcon.2023.100058
Scopus
Zitationen: 4
Dimensions
Zitationen: 4

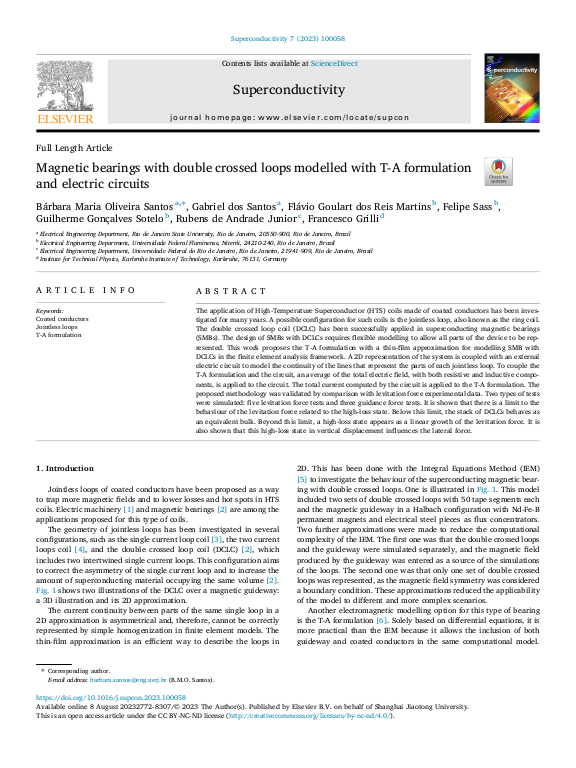

Cover der Publikation
